Name: TPS72501DCQRG4
Brand: Texas Instruments
SKU: TPS72501DCQRG4
Availability: InStock

new-10%

TPS72501DCQRG4

Manufacturer part number:TPS72501DCQRG4

Manufacturer:Texas Instruments

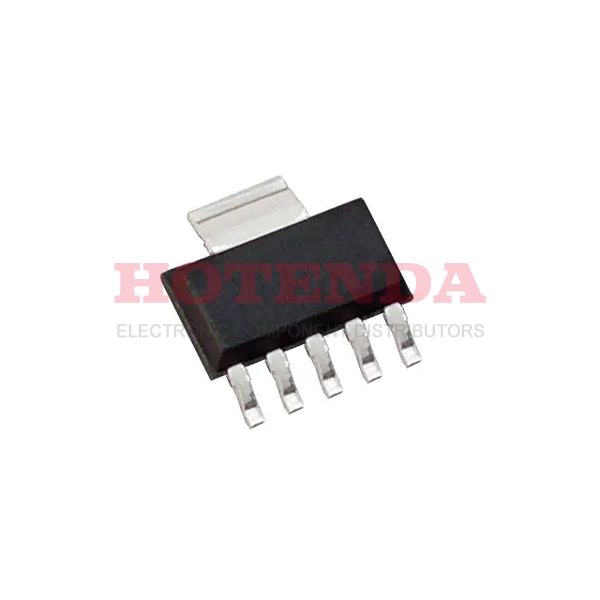

Description:Enable, Reset Adjustable Gold TPS72501 PMIC 6 SOT-223-6

Case Package:SOT-23

Datasheet:TPS72501DCQRG4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Surface Mount	YES
Number of Pins	6
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	6
ECCN Code	EAR99
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Base Part Number	TPS72501
Pin Count	6
Current - Supply (Max)	325μA
Number of Outputs	1
Voltage - Input (Max)	6V
Output Voltage	5V
Output Type	Adjustable
Max Output Current	1A
Output Configuration	Positive
Quiescent Current	70μA
Control Features	Enable, Reset
Accuracy	2 %
Max Output Voltage	5.5V
Number of Regulators	1
Min Input Voltage	1.8V
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	225μA
Voltage Dropout (Max)	0.28V @ 1A
PSRR	60dB (1kHz)
Reference Voltage	1.263V
Dropout Voltage	170mV
Dropout Voltage1-Nom	0.17V
Min Output Voltage	1.22V
Voltage - Output (Max)	5.5V
Min Current Limit	1.1A
Input Bias Current	75μA
Output Voltage Accuracy	2 %
Height	1.8mm
Length	6.5mm
Width	3.5mm
Thickness	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS72501DCQRG4 Product Details

TPS72501DCQRG4 Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a SOT-223-6 package. There are 6 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 6 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 6. FYI, the basic part number for this IC regulator is TPS72501. The way of packing the voltage regulator IC is TR. It works in 1A output current at mostIt operates in the 70μA Quiescent Current state.
