Name: TPS71701DCKT
Brand: Texas Instruments
SKU: TPS71701DCKT
Price: 1.61000 USD
Availability: InStock

new-10%

TPS71701DCKT

Manufacturer part number:TPS71701DCKT

Manufacturer:Texas Instruments

Description:Enable Adjustable Gold TPS71701 PMIC 5 5-TSSOP, SC-70-5, SOT-353

Case Package:SOT-23

Datasheet:TPS71701DCKT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 5 days ago)
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Surface Mount	YES
Number of Pins	5
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Termination	SMD/SMT
ECCN Code	EAR99
Power Rating	320mW
Packing Method	TR
Max Power Dissipation	320mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Base Part Number	TPS71701
Pin Count	5
Current - Supply (Max)	100μA
Number of Outputs	1
Output Voltage	6.2V
Output Type	Adjustable
Max Output Current	150mA
Max Supply Voltage	6.5V
Min Supply Voltage	2.5V
Output Configuration	Positive
Power Dissipation	320mW
Quiescent Current	50μA
Control Features	Enable
Accuracy	3 %
Max Output Voltage	6.2V
Voltage - Output (Min/Fixed)	0.9V
Number of Regulators	1
Min Input Voltage	2.5V
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	80μA
Voltage Dropout (Max)	0.3V @ 150mA
PSRR	70dB ~ 45dB (100Hz ~ 1MHz)
Reference Voltage	800mV
Dropout Voltage	170mV
Dropout Voltage1-Nom	0.17V
Min Output Voltage	900mV
Min Current Limit	200mA
Input Bias Current	50μA
Output Voltage Accuracy	3 %
Height	1.1mm
Length	2mm
Width	1.25mm
Thickness	900μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

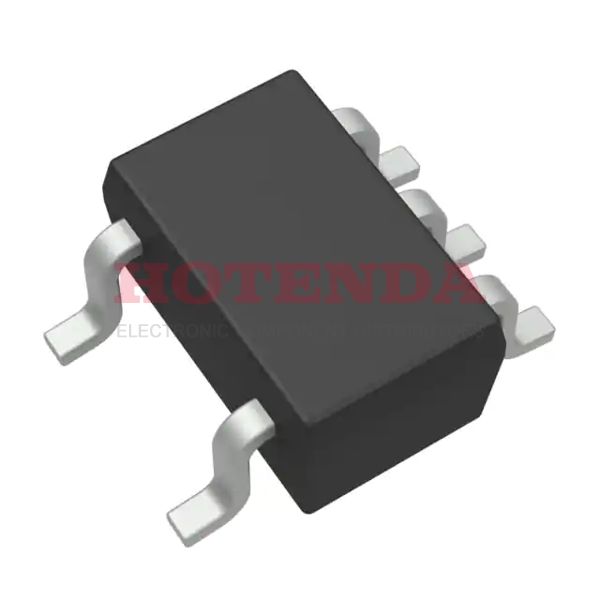

TPS71701DCKT Product Details

TPS71701DCKT Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. Packaged in a 5-TSSOP, SC-70-5, SOT-353 case, the battery regulator IC is protected from damage during shipment. There are 5 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. There are totally 5 pins on this chip. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 5. FYI, the basic part number for this IC regulator is TPS71701. The way of packing the voltage regulator IC is TR. It works in 150mA output current at mostIt operates in the 50μA Quiescent Current state. The IC voltage regulator can work with a supply voltage of 6.5V volts at top.
