TPS71256DRCTG4 Overview

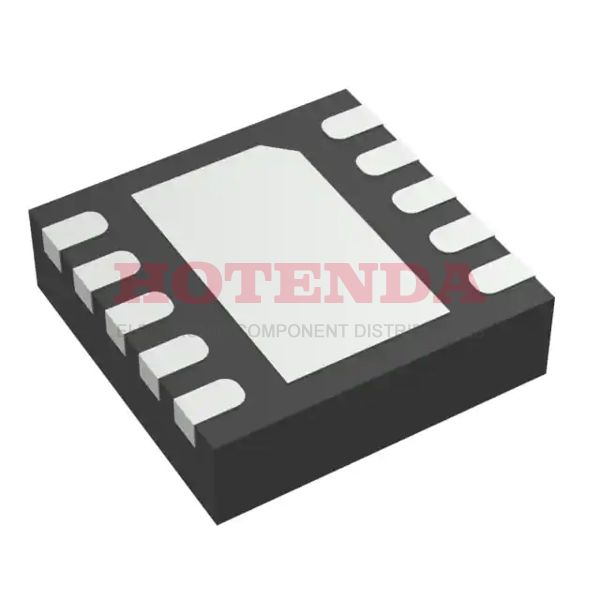

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 10-VFDFN Exposed Pad case. On the regulater IC chip, there are a total of 10 terminations. Output type Fixed. This component features 2 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 250mA. A total of 10 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 2 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 10 pins on the chip. As an FYI, this IC voltage regulator has the basic part number TPS71256. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 200mA. It operates in the 300μA Quiescent Current state.
TPS71256DRCTG4 Features
125mV dropout voltage
TR method of packing
TPS71256DRCTG4 Applications
There are a lot of Texas Instruments
TPS71256DRCTG4 Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
