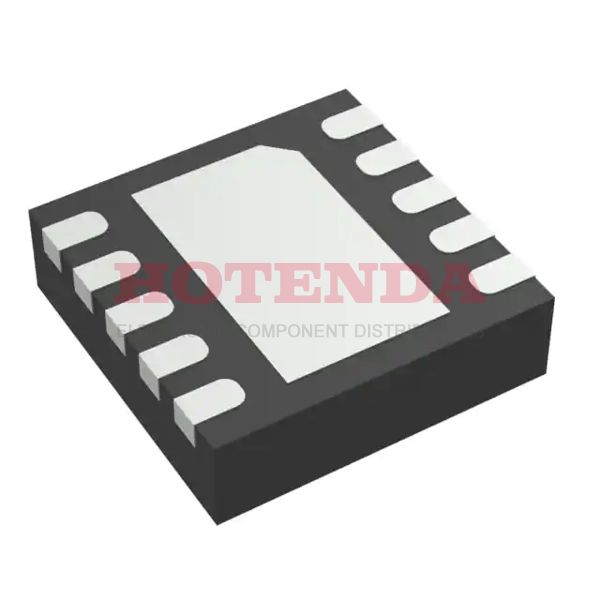

TPS71202DRCR Overview
A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 10-VFDFN Exposed Pad case is used for packaging. As you can see, the IC chip has 10 terminations. Regulator IC chip's output type is Adjustable. The electronic part implements 2 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 250mA. There are 10 pins in total in this voltage regulator IC. It has 2 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 10 pins are on the chip. For your information, this regulator's basic part number is TPS712. The component shown here is a typical Other Regulators component. There is a way of packing the regulator that is called TR. To meet operation requirements, the voltage regulator IC has a maximum output current of 200mA. It operates in the 300μA Quiescent Current state.
TPS71202DRCR Features
125mV dropout voltage
Other Regulators subtageroy
TR method of packing
TPS71202DRCR Applications
There are a lot of Texas Instruments
TPS71202DRCR Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
