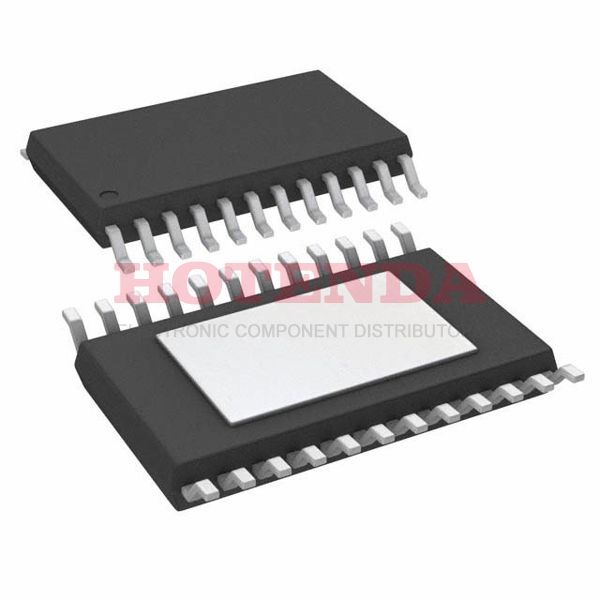

TPS70402PWPG4 Overview
Deliveries are in Tube cases. The package is in a 24-TSSOP (0.173, 4.40mm Width) Exposed Pad case. Basically, the voltage regulator chip is made up of 24 terminations. In this case, Adjustable represents the output type of the Voltage Regulated IC. This part implements 2 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 1A 2A on this regulator. The total number of pins in the regulator is 24. This IC regulator has a total of 2 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 24-shaped. As an FYI, this IC voltage regulator has the basic part number TPS70402. The maximal output current reaches 1A to meet the operating requirements. It operates in the 180μA Quiescent Current state.
TPS70402PWPG4 Features
160mV dropout voltage
TPS70402PWPG4 Applications
There are a lot of Texas Instruments
TPS70402PWPG4 Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
