TPS70302PWPG4 Overview

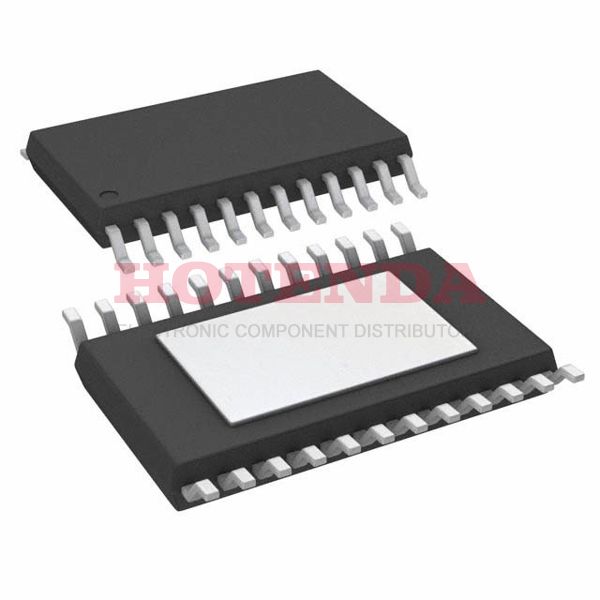

Tube cases are used for delivery. The Liner regulator IC is packaged in 24-TSSOP (0.173, 4.40mm Width) Exposed Pad case. On the Linear IC itself, there are 24 terminations. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 1A 2A from this regulator IC. There are a total of 24 pins on this board. There are 2 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 24 pins. For your information, the basic part number for this regulator IC is TPS70302. In order to meet the operation requirements, its maximal output current reaches 1A. It operates in the 180μA Quiescent Current state.
TPS70302PWPG4 Features
160mV dropout voltage
TPS70302PWPG4 Applications
There are a lot of Texas Instruments
TPS70302PWPG4 Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
