Name: TPS62302YZDT
Brand: Texas Instruments
SKU: TPS62302YZDT
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-VFBGA, DSBGA
Number of Pins	8
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Additional Feature	PFM CONTROL TECHNIQUE IS ALSO POSSIBLE
Subcategory	Switching Regulator or Controllers
Technology	CMOS
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TPS62302
Function	Step-Down
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Voltage	1.6V
Output Type	Fixed
Voltage - Input (Min)	2.7V
Input Voltage-Nom	3.6V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	500mA
Quiescent Current	86μA
Topology	Buck
Control Mode	VOLTAGE-MODE
Frequency - Switching	3MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Height Seated (Max)	0.625mm
Length	2.25mm
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

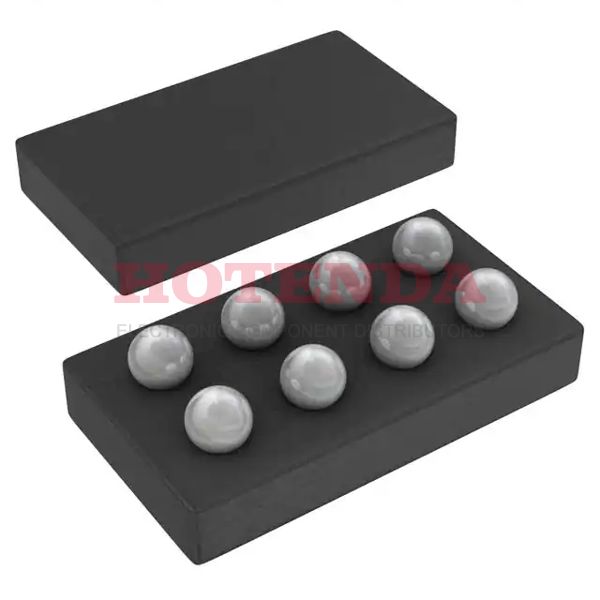

TPS62302YZDT Product Details

TPS62302YZDT Overview

A Tape & Reel (TR) package is used in this voltage regulator to optimize performance. In this voltage regulator, there are a total of 8 terminations. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHING REGULATOR. This harley voltage regulator is available in the 8-VFBGA, DSBGA package for the purpose of space saving. In this case, DC DC switching regulator has 1 outputs configured to it. As you can see, this DC DC switching regulator generates Fixed output on its output pins. The voltage regulator 12v fits the Surface Mount mounting hole. Operating at -40°C~85°C TA is the recommended temperature for adjusting voltage regulator's operation. Voltage regulator's switching frequency reaches 3MHz. This voltage regulator is able to operate with the minimal input voltage of 2.7V. This voltage regulator 12v features maximum design flexibility thanks to its 500mA output current. Voltage regulators' input voltage is limited to 6V. With its peak reflow temperature of NOT SPECIFIED, this voltage regulator is essentially indestructible. For operation, voltage regulator provides a nominal input voltage of 3.6V. There is a subcategory of this regulator voltage called Switching Regulator or Controllers. As part of the TPS62302 series of regulators, the voltage regulators can be found. Voltage of voltage regulator can be delivered at 1.6V volts. For switching regulator operation, 8 pins are used. There is no external influence on harley voltage regulator as it consumes 86μA A of quiescent current. In addition to adding efficiency and stability to the harley voltage regulator, the PFM CONTROL TECHNIQUE IS ALSO POSSIBLE feature brings even greater benefits.
