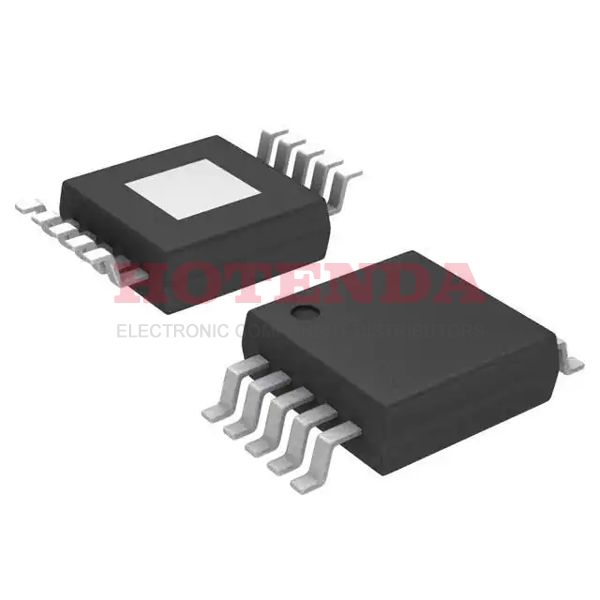

Name: TPS40003DGQRG4
Brand: Texas Instruments
SKU: TPS40003DGQRG4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad
Number of Pins	10
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	10
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory	Switching Regulator or Controllers
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
Base Part Number	TPS40003
Function	Step-Down
Number of Outputs	1
Output Voltage	700mV
Output Type	Transistor Driver
Input Voltage-Nom	5V
Analog IC - Other Type	SWITCHING CONTROLLER
Output Configuration	Positive
Voltage - Supply (Vcc/Vdd)	2.25V~5.5V
Control Features	Current Limit, Enable, Soft Start
Input Voltage (Min)	2.25V
Topology	Buck
Control Mode	VOLTAGE-MODE
Frequency - Switching	600kHz
Input Voltage (Max)	5.5V
Control Technique	PULSE WIDTH MODULATION
Rise Time	35ns
Synchronous Rectifier	Yes
Fall Time (Typ)	25 ns
Switcher Configuration	PUSH-PULL
Max Frequency	700kHz
Max Duty Cycle	97 %
Duty Cycle (Max)	93%
Clock Sync	No
Length	3mm
Width	3mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS40003DGQRG4 Product Details

TPS40003DGQRG4 Overview

With its 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad package, the switching controller fits the needs of most applications. For outputs of 1, this dc motor controller is suitable. Tape & Reel (TR) solid enclosure protects the pmic. It is capable of handling Transistor Driver dc switching's outputs (s). This dc control operates at 2.25V~5.5V and has a 2.25V~5.5V supply voltage. Worked in a -40°C~85°C TA dc switcher before. In this switching controller, the switch can be set to 600kHz. The Surface Mount allows it to be used for dc dc regulator in general. In order to control switching efficiently, the dcdc regulator features Current Limit, Enable, Soft Start. SWITCHING CONTROLLER analog IC connects the switch converters. Switching converters are designed with the terminal (s) at position DUAL . The 10 terminations can be used for a wide range of dc switching. A few of the control techniques these dc dc converter ics adapt include PULSE WIDTH MODULATION. A DC switcher's nominal voltage of 5V is input. Searching "TPS40003" will return other relevant dc to dc converter ics. 10 pins are on switching converter. There is a particular type of Switching Regulator or Controllers in switching converter. Input voltage of dc dc voltage regulator should be 2.25V. Based on the test statistics, DC regulator outputs voltage 700mV. It should be noted that the dc to dc regulator only accepts 5.5V voltage as input voltage. During power-up and power-down, the maximum duty cycle of the voltage regulator dc to dc is set to 97 %. In most applications and prototype designs, DC switcher is qualified as a Surface Mount. There is a maximum frequency of 700kHz on this dc regulators.
