TPS22990DMLR Description
The TPS22990DMLR On-Resistance Load Switch features an N-channel MOSFET with an input voltage range of 0.6 V to 5.5 V and a maximum continuous current of 10 A. The TPS22990DMLR's wide input voltage range and strong current capabilities allow them to be employed in a variety of designs and end equipment. The 3.9-m On resistance reduces the voltage drop across the load switch as well as power loss from the load switch.
TPS22990DMLR Features
Integrated Single Channel Load Switch
VBIAS Voltage Range: 2.5 V to 5.5 V
VIN Voltage Range: 0.6 V to VBIAS
On-Resistance
10-A Maximum Continuous Switch Current
Quiescent Current
– IQ,VBIAS = 63 μA at VBIAS = 5 V
Shutdown Current
Controlled and Adjustable Slew Rate through CT
Power Good (PG) Indicator
Quick Output Discharge (QOD) (TPS22990 Only)

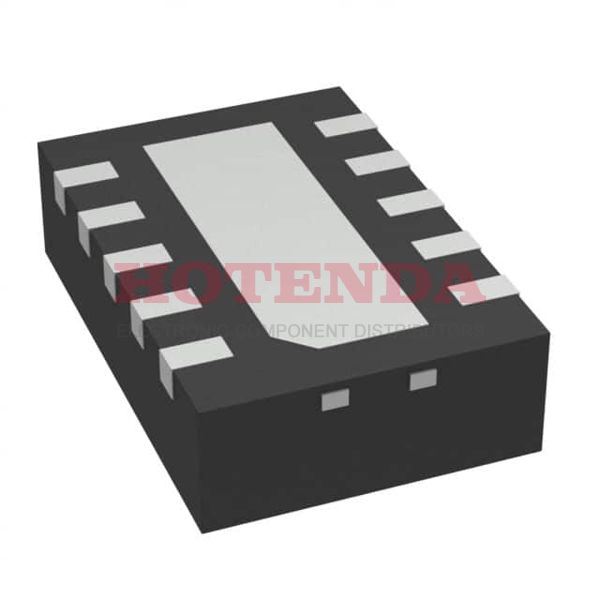

3-mm × 2-mm SON 10-pin Package with Thermal Pad
ESD Performance Tested per JESD 22
– 2-kV HBM and 1-kV CDM
TPS22990DMLR Applicaitons
Desktop PC and Industrial PC
Solid State Drives (SSDs)
Servers
Telecom systems
Notebooks, Chromebooks and Tablets
