Name: TMX320F2801PZA
Brand: Texas Instruments
SKU: TMX320F2801PZA
Availability: InStock

new-10%

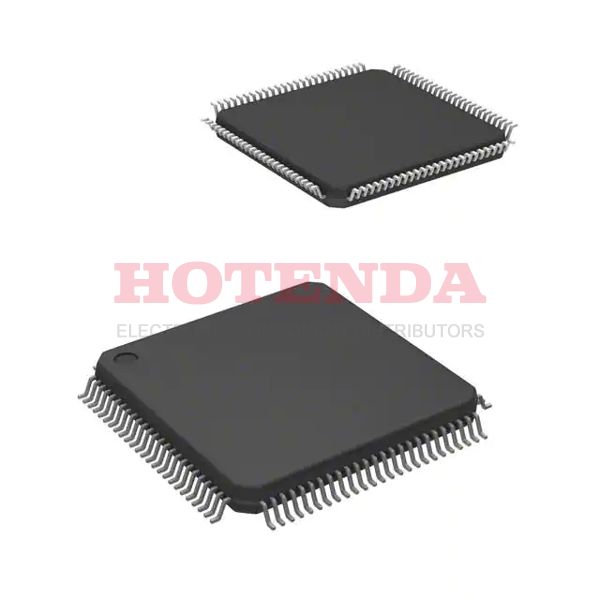

TMX320F2801PZA

Manufacturer part number:TMX320F2801PZA

Manufacturer:Texas Instruments

Description:32KB 16K x 16 FLASH C28x 32-Bit Microcontroller C2000™ C28x Fixed-Point Series 320F2801 100 Pin 100MHz 1.8V 100-LQFP

Case Package:SOT-23

Datasheet:TMX320F2801PZA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	100-LQFP
Surface Mount	YES
Number of Pins	100
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	C2000™ C28x Fixed-Point
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
ECCN Code	3A001.A.3
Additional Feature	ALSO REQUIRES 3.3V SUPPLY
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	1.8V
Terminal Pitch	0.5mm
Frequency	100MHz
Base Part Number	320F2801
Pin Count	100
Supply Voltage-Max (Vsup)	1.89V
Power Supplies	1.83.3V
Supply Voltage-Min (Vsup)	1.71V
Interface	CAN, I2C, SCI, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	35
RAM Size	6K x 16
Voltage - Supply (Vcc/Vdd)	1.71V~1.89V
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	C28x
Peripherals	POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	32KB 16K x 16
Connectivity	CANbus, I2C, SCI, SPI, UART/USART
Bit Size	32
Data Converter	A/D 16x12b
Data Bus Width	32b
Boundary Scan	YES
Low Power Mode	YES
RAM (words)	6144
Barrel Shifter	NO
Internal Bus Architecture	MULTIPLE
Length	14mm
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TMX320F2801PZA Product Details

TMX320F2801PZA Overview
