TMS320F2809ZGMA

Manufacturer part number:TMS320F2809ZGMA

Manufacturer:Texas Instruments

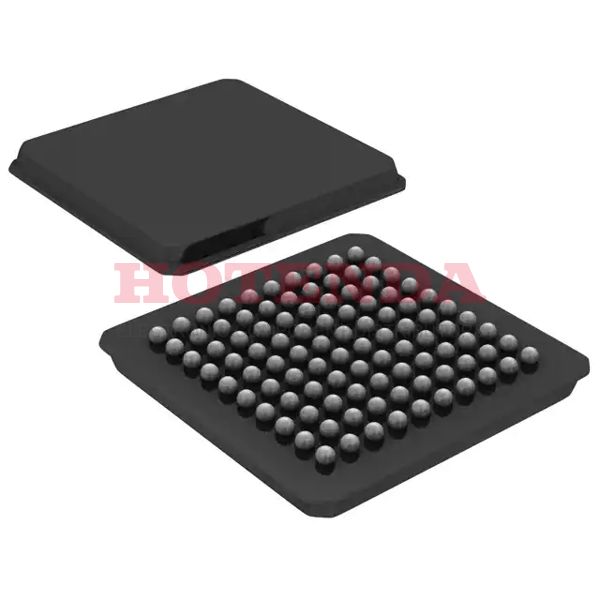

Description:256KB 128K x 16 FLASH C28x 32-Bit Microcontroller Automotive, AEC-Q100, C2000™ C28x Fixed-Point Series 320F2809 100 Pin 100MHz 1.8V 100-LFBGA

Case Package:SOT-23

Datasheet:TMS320F2809ZGMA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-LFBGA
Number of Pins	100
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	Automotive, AEC-Q100, C2000™ C28x Fixed-Point
JESD-609 Code	e1
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature	ALSO REQUIRES 3.3V SUPPLY
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.8V
Terminal Pitch	0.8mm
Frequency	100MHz
Base Part Number	320F2809
Pin Count	100
Operating Supply Voltage	1.8V
Supply Voltage-Max (Vsup)	1.89V
Power Supplies	1.83.3V
Interface	CAN, I2C, SCI, SPI, UART, USART
Memory Size	256kB
Oscillator Type	Internal
RAM Size	18K x 16
Voltage - Supply (Vcc/Vdd)	1.71V~1.89V
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	C28x
Peripherals	POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 128K x 16
Connectivity	CANbus, I2C, SCI, SPI, UART/USART
Bit Size	32
Data Converter	A/D 16x12b
Data Bus Width	32b
PWM Channels	12
Density	2 Mb
Boundary Scan	YES
Low Power Mode	YES
Number of A/D Converters	16
Number of Programmable I/O	35
Integrated Cache	NO
Number of UART Channels	2
Number of Timers	10
Number of External Interrupts	3
Barrel Shifter	NO
Internal Bus Architecture	MULTIPLE
Height	1.4mm
Length	10mm
Width	10mm
Thickness	900μm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TMS320F2809ZGMA Product Details

TMS320F2809ZGMA Description

Members of the TMS320C28x DSP generation, the TMS320F2809, TMS320F2809-Q1, TMS320F2808, TMS320F2808-Q1, TMS320F2806, TMS320F2802, TMS320F2801, TMS320F2801-Q1, TMS320F28015, TMS320F28016, TMS320C2802-Q1, and TMS320C2801 devices are highly integrated, high-performance solutions for demanding control.

TMS320F2809ZGMA Features

Any GPIO A pin can be connected to one of the three external core interrupts
Peripheral Interrupt Expansion (PIE) block that supports all 43 peripheral interrupts
Endianness: Little endian
Up to 35 individually programmable, multiplexed GPIO pins with input filtering
Advanced emulation features
Three 32-bit CPU timers
Enhanced control peripherals
