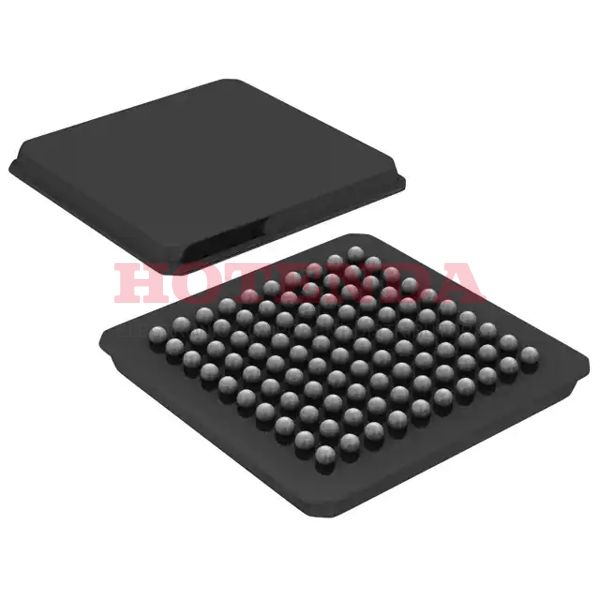

Name: TMS320F2808GGMS
Brand: Texas Instruments
SKU: TMS320F2808GGMS
Availability: InStock

new-10%

TMS320F2808GGMS

Manufacturer part number:TMS320F2808GGMS

Manufacturer:Texas Instruments

Description:128KB 64K x 16 FLASH C28x 32-Bit Microcontroller Automotive, AEC-Q100, C2000™ C28x Fixed-Point Series 320F2808 100 Pin 100MHz 1.8V 100-LFBGA

Case Package:SOT-23

Datasheet:TMS320F2808GGMS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	6 Weeks
Contact Plating	Lead, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-LFBGA
Number of Pins	100
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	Automotive, AEC-Q100, C2000™ C28x Fixed-Point
JESD-609 Code	e0
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Finish	Tin/Lead (Sn/Pb)
Additional Feature	ALSO REQUIRES 3.3V SUPPLY
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	220
Supply Voltage	1.8V
Terminal Pitch	0.8mm
Frequency	100MHz
Base Part Number	320F2808
Pin Count	100
Operating Supply Voltage	1.8V
Supply Voltage-Max (Vsup)	1.89V
Power Supplies	1.83.3V
Interface	CAN, I2C, SCI, SPI, UART, USART
Memory Size	128kB
Oscillator Type	Internal
RAM Size	18K x 16
Voltage - Supply (Vcc/Vdd)	1.71V~1.89V
uPs/uCs/Peripheral ICs Type	DIGITAL SIGNAL PROCESSOR, OTHER
Core Processor	C28x
Peripherals	POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 64K x 16
Connectivity	CANbus, I2C, SCI, SPI, UART/USART
Bit Size	32
Data Converter	A/D 16x12b
Data Bus Width	32b
PWM Channels	12
Core Architecture	TMS320
Boundary Scan	YES
Low Power Mode	YES
Number of A/D Converters	16
Number of Programmable I/O	35
Integrated Cache	NO
Number of UART Channels	2
Number of Timers	10
Number of External Interrupts	3
Barrel Shifter	NO
Internal Bus Architecture	MULTIPLE
Height	1.4mm
Length	10mm
Width	10mm
Thickness	900μm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

TMS320F2808GGMS Product Details

TMS320F2808GGMS Description

Microcontrollers - MCU is the category that TMS320F2808GGMS is under. It is used in a variety of industries, including Industrial Lighting, Business Systems, Business Machines, Personal Electronics, and Tablets. The C2000TM 32-bit MCU has 100 MHz, 128 KB of flash memory, and 12 PWM 100-BGA MICROSTAR pins with a range of -40 to 125. It is also environmentally friendly and RoHS compliant (lead-free).
