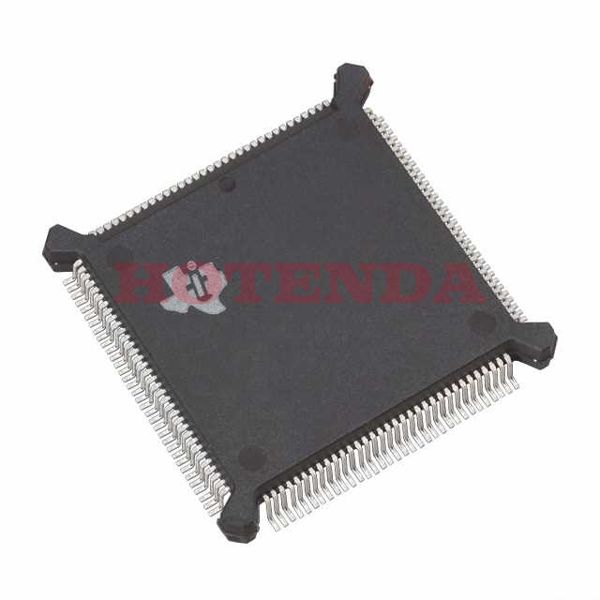

32KB 16K x 16 FLASH C2xx DSP 16-Bit Microcontroller C2000™ C24x 16-Bit Series 320F240 132 Pin 20MHz 5V 132-BQFP Bumpered
SOT-23
TMS320F240PQA Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
132-BQFP Bumpered
Number of Pins
132
Weight
4.608697g
Operating Temperature
-40°C~85°C TA
Packaging
Tray
Series
C2000™ C24x 16-Bit
JESD-609 Code
e4
Pbfree Code
no
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
4 (72 Hours)
Number of Terminations
132
ECCN Code
3A991.A.2
Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code
8542.31.00.01
Terminal Position
QUAD
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
Supply Voltage
5V
Terminal Pitch
0.635mm
Frequency
20MHz
Base Part Number
320F240
Pin Count
132
Operating Supply Voltage
5V
Power Supplies
5V
Interface
EBI/EMI, SCI, SPI, UART, USART
Memory Size
32kB
Oscillator Type
Internal
Number of I/O
28
RAM Size
1K x 8
Voltage - Supply (Vcc/Vdd)
4.5V~5.5V
uPs/uCs/Peripheral ICs Type
DIGITAL SIGNAL PROCESSOR, OTHER
Number of Bits
16
Core Processor
C2xx DSP
Peripherals
POR, PWM, WDT
Program Memory Type
FLASH
Core Size
16-Bit
Program Memory Size
32KB 16K x 16
Connectivity
EBI/EMI, SCI, SPI, UART/USART
Bit Size
16
Data Converter
A/D 16x10b
Data Bus Width
16b
Address Bus Width
16
Density
256 kb
CPU Family
TMS320
Boundary Scan
YES
Low Power Mode
YES
Format
FIXED POINT
Barrel Shifter
YES
Internal Bus Architecture
MULTIPLE
Length
24.13mm
Height Seated (Max)
4.57mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Contains Lead
In-Stock:2255 items
TMS320F240PQA Product Details
TMS320F240PQA Description
The TMS320F240PQA is a DSP controller from the TMS320C2xx range of 16-bit fixed-point digital signal processors (DSPs). This family has been designed specifically for digital motor/motion control applications.
