TM4C123BH6PGEIR Overview

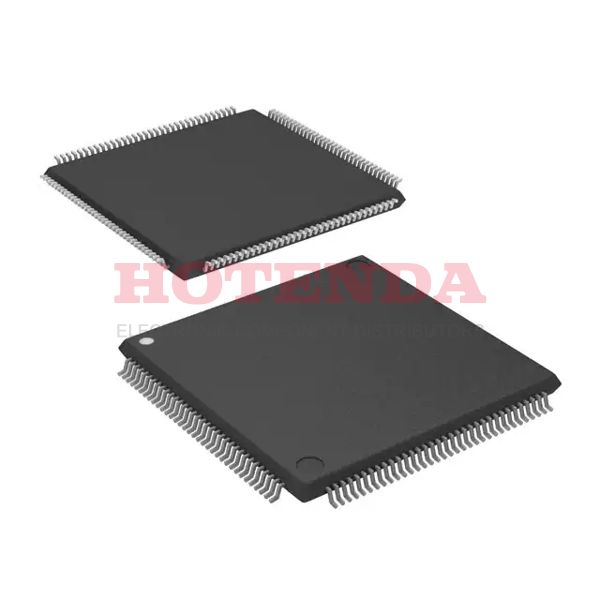

A 144-LQFP package is included. In total, it has 105 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 32-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. Tiva™ C series components belong to this electrical component. Its program memory size is 256KB 256K x 8. There is a ARM® Cortex®-M4F Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 144 terminations in total. The part works on a 32-bit basis. An output voltage of 3.3V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. 256kB memory size belongs to the part. M4C123 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 80MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel YES. On the chip, there are 144 pins that are accessible. Devices based on the CORTEX-M4F series of CPUs are embedded in the device. It is built on a ARM core architecture. The device has 8 UART channels. The Microcontroller has 24 A/D converters. 12 bits are found on a chip.
TM4C123BH6PGEIR Features
144-LQFP package
Mounting type of Surface Mount
TM4C123BH6PGEIR Applications
There are a lot of Texas Instruments
TM4C123BH6PGEIR Microcontroller applications.
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
