TLV71729PDQNR Overview

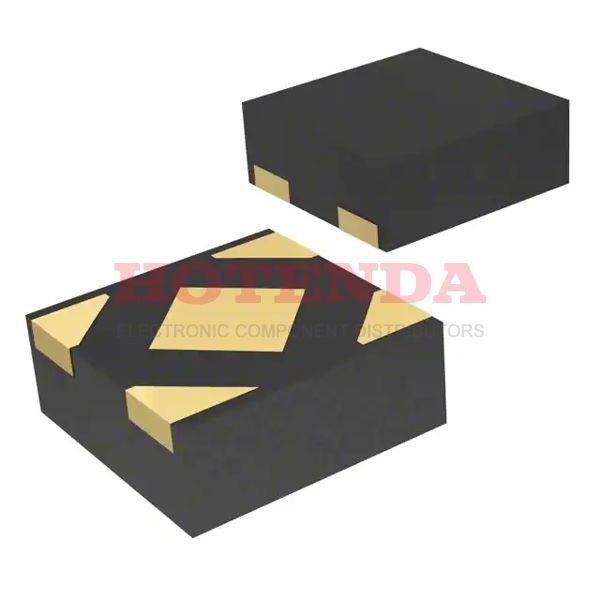

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 4-XDFN Exposed Pad case is used for packaging. As you can see, the IC chip has 4 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~85°C TJ degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 150mA. There are 4 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 4 pins are on the chip. For your information, this regulator's basic part number is TLV71729. There is a way of packing the regulator that is called TR. It operates in the 30μA Quiescent Current state.
TLV71729PDQNR Features
215mV dropout voltage
TR method of packing
TLV71729PDQNR Applications
There are a lot of Texas Instruments
TLV71729PDQNR Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
