TLV7111225DSET Overview

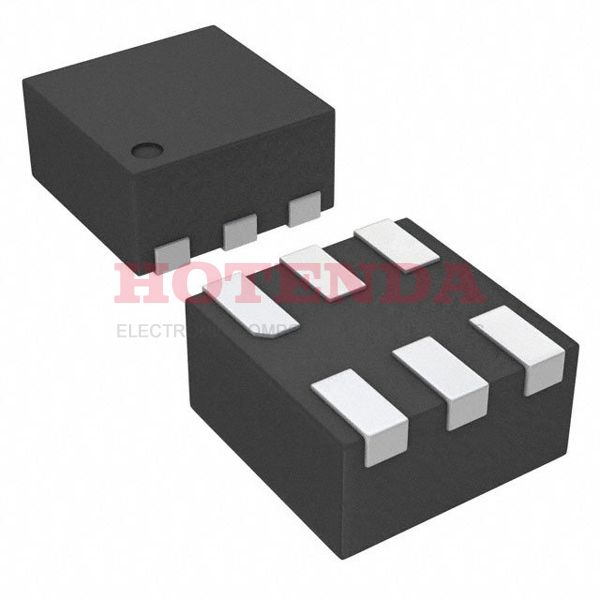

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 6-WFDFN case is used for packaging. As you can see, the IC chip has 6 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 2 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C TJ degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. It has 2 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 6 pins are on the chip. For your information, this regulator's basic part number is TLV7111225. The component shown here is a typical Other Regulators component. There is a way of packing the regulator that is called TR. To meet operation requirements, the voltage regulator IC has a maximum output current of 200mA. It operates in the 110μA Quiescent Current state.
TLV7111225DSET Features
175mV dropout voltage
Other Regulators subtageroy
TR method of packing
TLV7111225DSET Applications
There are a lot of Texas Instruments
TLV7111225DSET Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
