TLV705285YFPR Overview

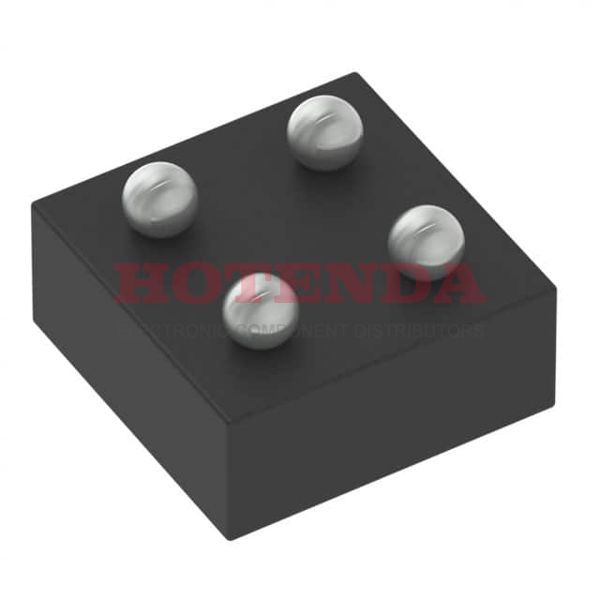

Deliveries are in Tape & Reel (TR) cases. The package is in a 4-XFBGA, DSBGA case. Basically, the voltage regulator chip is made up of 4 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C TJ degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 200mA on this regulator. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 4-shaped. As an FYI, this IC voltage regulator has the basic part number TLV705285. Packing the voltage regulator IC in this way is called TR packing. It operates in the 30μA Quiescent Current state.
TLV705285YFPR Features
145mV dropout voltage
TR method of packing
TLV705285YFPR Applications
There are a lot of Texas Instruments
TLV705285YFPR Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
