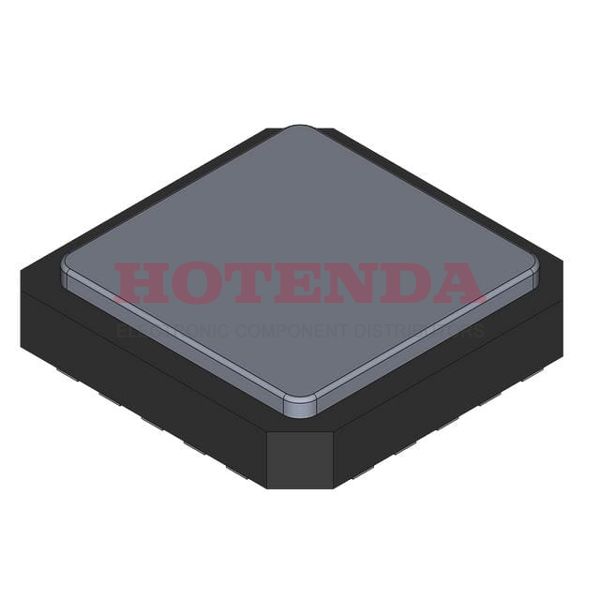

TLE2082MFKB Overview
Op amp is packaged in LCC case. Op amps are OPERATIONAL AMPLIFIER types of amplifier on the chip. The number of terminations approaches 20. Linear amplifier has a total of 20 pins. Please take in mind that op amp should be run at 5V. Linear amplifier includes 20 pins. The voltage gain should stay at 106dB. Instrumentation amplifier has 2 channels on it. It should not lower than -55°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 125°C. Conduct linear amplifier under the dual suuply voltage of 19V.
TLE2082MFKB Features
20 Pins
supply voltage of 5V
106dB voltage gain
TLE2082MFKB Applications
There are a lot of Texas Instruments
TLE2082MFKB Instrumentational OP Amps applications.
- Proportional operation circuits
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
