TL780-15CKTE

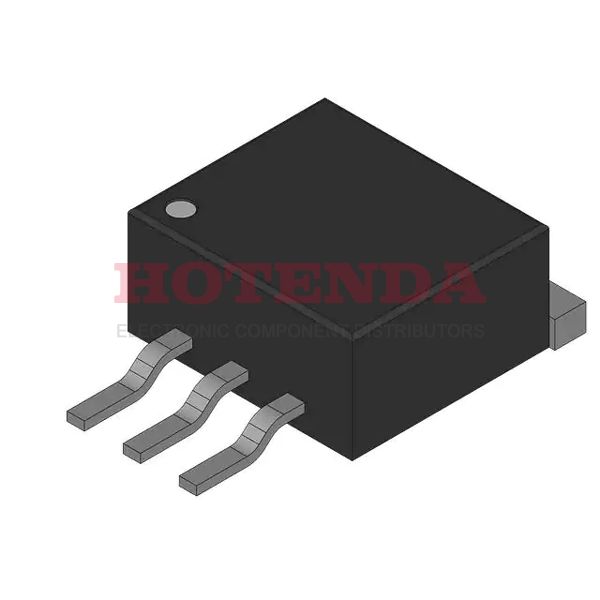

  • TL780-15CKTE - 2.54mm PMIC 3
  • TL780-15CKTE - 2.54mm PMIC 3

TL780-15CKTE

TL780-15CKTE

Texas Instruments

2.54mm PMIC 3

SOT-23

TL780-15CKTE Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Surface MountYES
Number of Terminations 3
ECCN Code EAR99
HTS Code8542.39.00.01
Subcategory Other Regulators
Technology BIPOLAR
Terminal Position SINGLE
Terminal FormGULL WING
Number of Functions 1
Terminal Pitch2.54mm
Pin Count3
JESD-30 Code R-PSSO-G3
Number of Outputs 1
Qualification StatusNot Qualified
Quiescent Current5.5mA
Voltage - Output 15V
Output Voltage 1 15V
Input Voltage (Min) 17.5V
Input Voltage (Max) 30V
Dropout Voltage2V
Dropout Voltage1-Nom 2V
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Voltage Tolerance-Max 2%
Output Current1-Max 1.5A
Operating Temperature TJ-Max 125°C
Input Voltage Absolute-Max 35V
Adjustability FIXED
Load Regulation-Max(%) 0.075%
Line Regulation-Max (%/V) 0.015%
Length 9.395mm
Height Seated (Max) 2.16mm
Width 8.51mm
RoHS StatusRoHS Compliant
Lead Free Contains Lead
In-Stock:21212 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.34000$0.34
500$0.3366$168.3
1000$0.3332$333.2
1500$0.3298$494.7
2000$0.3264$652.8
2500$0.323$807.5

TL780-15CKTE Product Details

TL780-15CKTE Description


TL780-15CKTE, distributed by Worldway Electronics. It's category belong to Electronic Components ICs. It is applied to many fields, like Automotive Hybrid, electric & powertrain systems Industrial Motor drives Enterprise systems Enterprise machine. And the main parameters of this part is: Fixed Positive Standard Regulator, 15VBIPolar, PSSO3. Additionally, it is green and compliant to RoHS (Lead free / RoHS Compliant).
