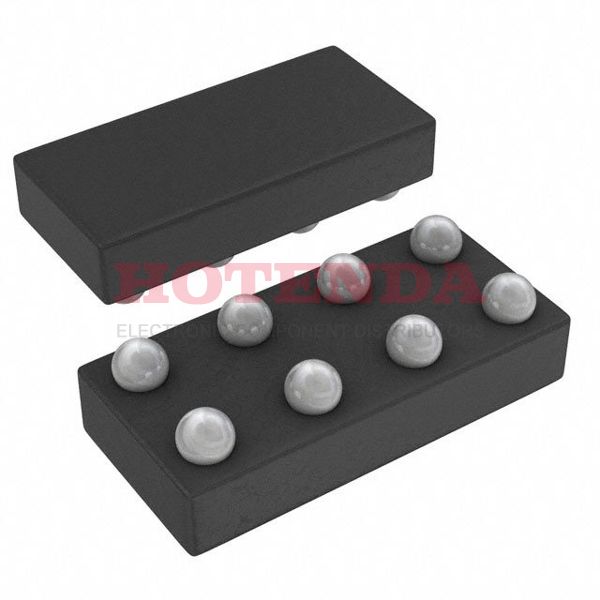

SN74LVC2G32YZPR Overview
As the part is packed in 8-XFBGA, DSBGA, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Cut Tape (CT). This logic works according to the OR Gate principle. Ensure the part's full functionality by setting the voltage to 1.65V~5.5V. Operating temperature extended to -40°C~85°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 74LVC is its series number. Total terminations are 8. Users will benefit significantly from 2 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 74LVC2G32 will yield device variants. The part body receives 8 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 8 pin functions are available upon request. Quiescent parts carry 10μA current. Part now bears a 50pF load capacitance. When 5.5V is reached, the maximum supply voltage (Vsup) is reached. In addition to this, it is packed with the industry TR method. A 3.3V power supply is specified in the datasheet for this part. This device includes 1 outputs. For operation, 2 elements are used.
SN74LVC2G32YZPR Features
OR Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 10μA
SN74LVC2G32YZPR Applications
There are a lot of Texas Instruments
SN74LVC2G32YZPR Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
