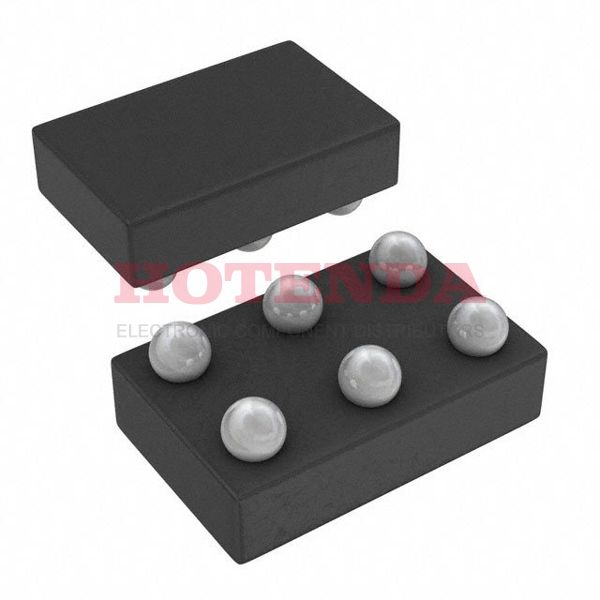

SN74LVC2G14YZPR Overview
The part can be shipped overseas conveniently because it is packaged in 6-XFBGA, DSBGA. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of Inverter. The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 32mA 32mA. This is part of the 74LVC series. In total, there are 6 terminations. 2 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Use 74LVC2G14 to search for device variants. There are 6 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 6 pins can be found in the datasheets. When the part is quiescent, 10μA current flows through it. It has a load capacitance of 50pF. As soon as Vsup reaches 5.5V, the maximal supply voltage (Vsup) is reached. There is an industry TR method included. 32mA is the device's output current rating. The operation uses 2 elements in total. It is specified that the operating supply voltage for the chip will be 3.3V volts. Schmitt Trigger is its feature.
SN74LVC2G14YZPR Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 10μA
Output Current: 32mA
