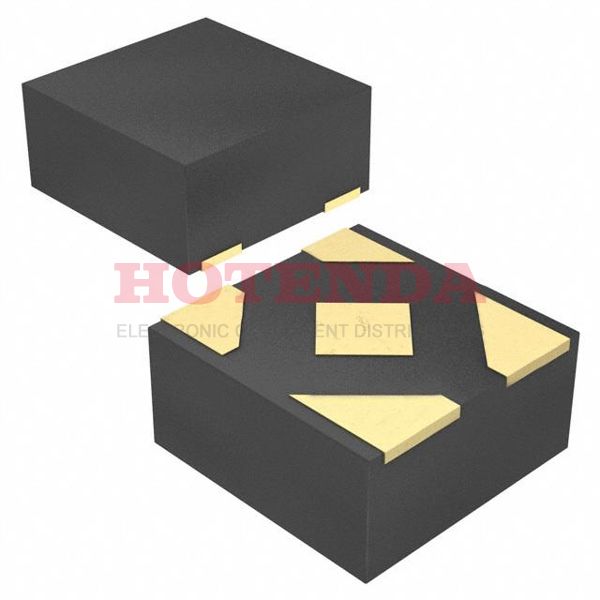

SN74LVC1G04DPWR Overview
The part can be shipped overseas conveniently because it is packaged in 4-XFDFN Exposed Pad. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of Inverter. The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 32mA 32mA. This is part of the 74LVC series. In total, there are 4 terminations. 1 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Use 74LVC1G04 to search for device variants. Many applications use this logic device with Surface Mount mounting. The functions of 5 pins can be found in the datasheets. When the part is quiescent, 10μA current flows through it. The operation uses 1 elements in total.
SN74LVC1G04DPWR Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 10μA
SN74LVC1G04DPWR Applications
There are a lot of Texas Instruments
SN74LVC1G04DPWR Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
