SN74LVC06ARGYR Overview

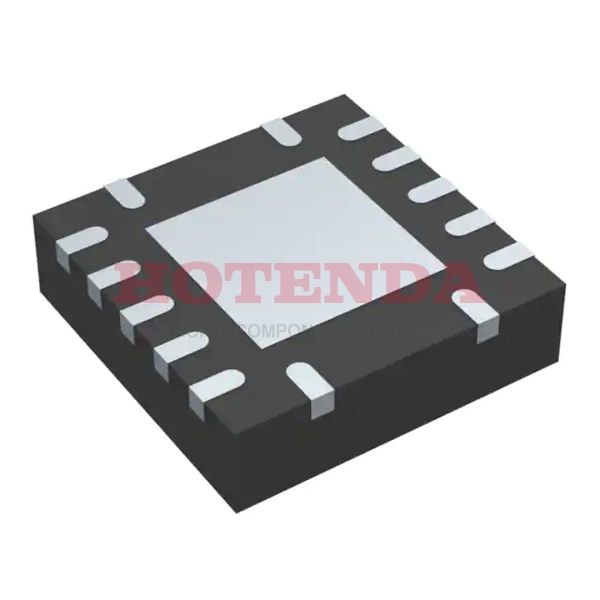

Packed in 14-VFQFN Exposed Pad, the part is convenient for shipping overseas. Advanced packaging method Cut Tape (CT) is used to provide high reliability. It works based on the Inverter logic principle. To ensure the part's full function, a voltage of 1.65V~3.6V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is - 24mA. It comes from the 74LVC series. There are 14 terminations totally. The part has 6 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. If you are looking for device variants, try search with 74LVC06. 14 pins are injected into the part body. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 14 pins functions. In the quiescent state, the part has 1μA current flowing through it. The part bears a load capacitance of 50pF. It is packed with the industry TR method. As specified in datasheets, the part requires 3.3V power supplies. It features Open Drain. By its 6 channels, the part provides high quality logic output.
SN74LVC06ARGYR Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 1μA
SN74LVC06ARGYR Applications
There are a lot of Texas Instruments
SN74LVC06ARGYR Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
