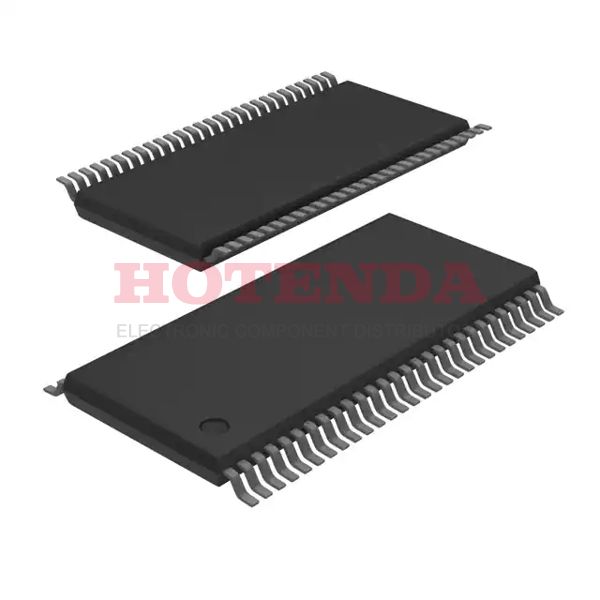

SN74CBT16390DLR Overview
Due to the fact that it is provided in the 56-BSSOP (0.295, 7.50mm Width), digital switch allows the board to be compacted.As a result, it is packaged in the way of Tape & Reel (TR).Surface Mount is the mounting method digital switch ic uses.Multiplexer/Demultiplexer is the analog IC that the multiplexers uses.When the operating temperature is kept at -40°C~85°C, the machine will not be sensturn signal switchive to external influences.When digital controlled switch operates at 4.5V~5.5V, designers have superior flexibility.The multiplexers can be used for a wide range of applications since they are members of 74CBT series.There is a design for terminating 56 as part of its basic configuration.In addition, it also has a base part number of 74CBT16390, which can be used to find related parts.For multiplexer's system, a voltage of 5V is supplied.Signal switch has 56 component pins.A conductor terminates at GULL WING.Its supply type is Single, which is used as the source of power.With 56 pins, it is configured.It is positioned in the direction of Surface Mount.The logic switch belongs to the family of CBT/FST/QS/5C/B.Keep Vsup at 4.5V to avoid unnecessary failures.It is advisable that the maximal supply voltage (Vsup) remains at 5.5V to avoid some unnecessary failures.The power supply of 5V is provided for mux switch's normal operation.Other Logic ICs is a category for the digital switch ics.A voltage level can be inserted into the 32 input lines of multiplexers.As a signal source, there are 16 output lines.
SN74CBT16390DLR Features
Supplied in the 56-BSSOP (0.295, 7.50mm Width) package
Adopting a supply type of Single
Power supplies of 5V
32 input lines
16 output lines
SN74CBT16390DLR Applications
There are a lot of Texas Instruments SN74CBT16390DLR Signal Switches / Multiplexers / Decoders applications.
- CNC machines
- Implementing boolean functions with multiple variables
- D/A converters
- Used to connect a single source to multiple destinations
- Enabling block of memory depending on address in memory chips
- Automatic health monitoring systems
- Medium scale TV wall
- Electronics industry
- Time division multiplexing system
- High-performance memory systems
