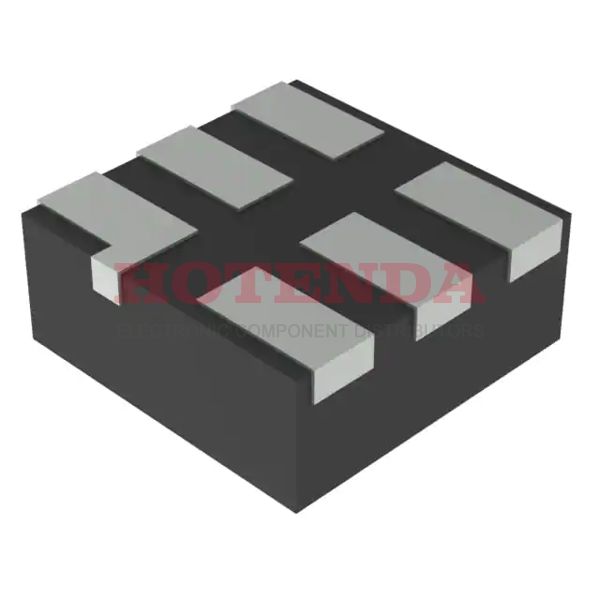

SN74AUP1G32DSFR Overview
Shipping overseas is convenient with the part packed in 6-XFDFN. High reliability is provided by advanced packaging method Tape & Reel (TR). Based on the OR Gate logic principle, it works. A voltage of 0.8V~3.6V is required for the part to function properly. Increasing operating temperature to around -40°C~85°C. In Surface Mount, the part is mounted. There is 4mA 4mA output current in the high or low states. The 74AUP series contains it. Total terminations are 6. User experience is significantly enhanced by the part's 1 functions. The chip is a part of AUP/ULP/V. Try searching with 74AUP1G32 if you're looking for device variants. The part body is injected with 6 pins. This logic device is widely used in a wide variety of applications because it is Surface Mount mounted. For functions related to 6 pins, please refer to the datasheets. 2 inputs are supported by the part. The part has 500nA current flowing through it in the quiescent state. 30pF is the load capacitance of the part. A minimum voltage of 0.8V is required to supply the device. The industry TR method is included. There is 4mA output current rated for the device. The total number of elements used for operation is 1.
SN74AUP1G32DSFR Features
OR Gate Logic Type
Operating Temperature: -40°C~85°C
AUP/ULP/V Family
Quiescent Current: 500nA
Output Current: 4mA
SN74AUP1G32DSFR Applications
There are a lot of Texas Instruments
SN74AUP1G32DSFR Gates and Inverters applications.
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
