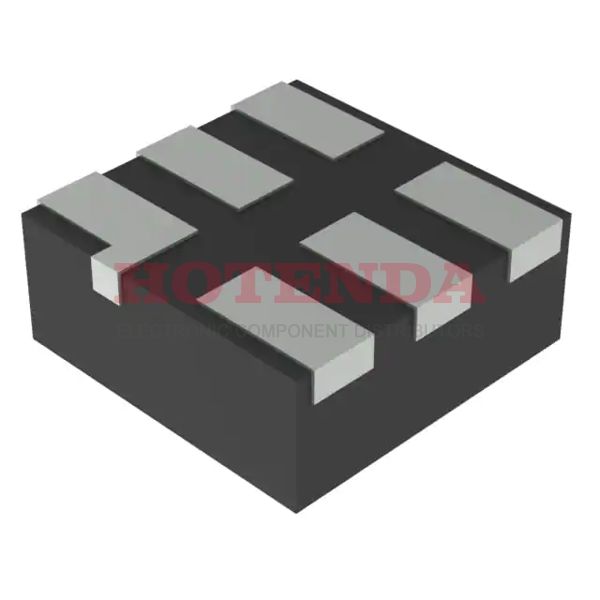

SN74AUP1G00DSF2 Overview
The part is convenient to ship overseas because it is packed in a 6-XFDFN. The advanced packaging method Tape & Reel (TR) provides high reliability. A NAND Gate logic principle governs its operation. Voltage 0.8V~3.6V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~85°C. Mounted in Surface Mount. Output current is 4mA 4mA in the high and low states. 74AUP is the series it belongs to. The total number of terminations is 6. There are 1 functions that significantly improve the user experience. As part of AUP/ULP/V, this chip is used. Try searching with 74AUP1G00 to find device variants. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 6 pins are available. Inputs are limited to 2. Quiescent parts have 500nA current flowing through them. The device consists of 1 circuits. To supply the device, it requires a voltage of 0.8V.
SN74AUP1G00DSF2 Features
NAND Gate Logic Type
Operating Temperature: -40°C~85°C
AUP/ULP/V Family
Quiescent Current: 500nA
SN74AUP1G00DSF2 Applications
There are a lot of Texas Instruments
SN74AUP1G00DSF2 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
