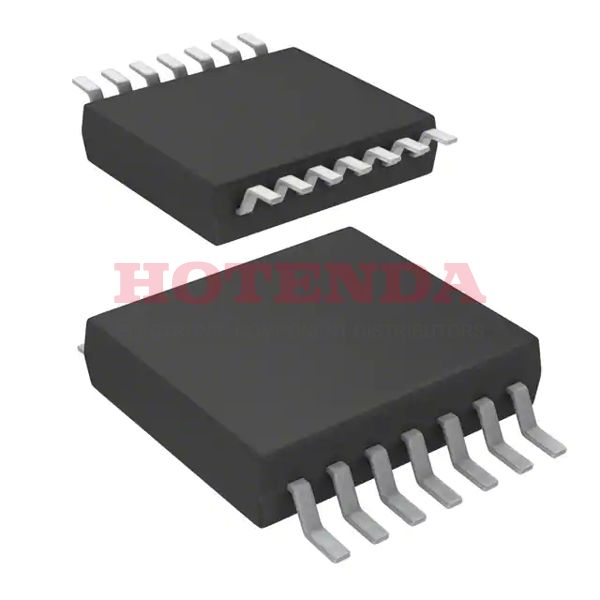

SN74AHCT04DGVR Overview
As the part is packed in 14-TFSOP (0.173, 4.40mm Width), international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Cut Tape (CT). This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 4.5V~5.5V. Operating temperature extended to -40°C~125°C. It is mounted in position Surface Mount. 8mA 8mA is the output current's high and low states. 74AHCT is its series number. Total terminations are 14. Users will benefit significantly from 6 functions in this part. There is a chip like this in AHCT/VHCT/VT. Trying searching with 74AHCT04 will yield device variants. The part body receives 14 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 14 pin functions are available upon request. Quiescent parts carry 2μA current. Part now bears a 50pF load capacitance. In addition to this, it is packed with the industry TR method. A 5V power supply is specified in the datasheet for this part. For operation, 6 elements are used. There is a specification for the operating voltage of the chip, 5VV, which is referred to as the supply voltage.
SN74AHCT04DGVR Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
AHCT/VHCT/VT Family
Quiescent Current: 2μA
SN74AHCT04DGVR Applications
There are a lot of Texas Instruments
SN74AHCT04DGVR Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
