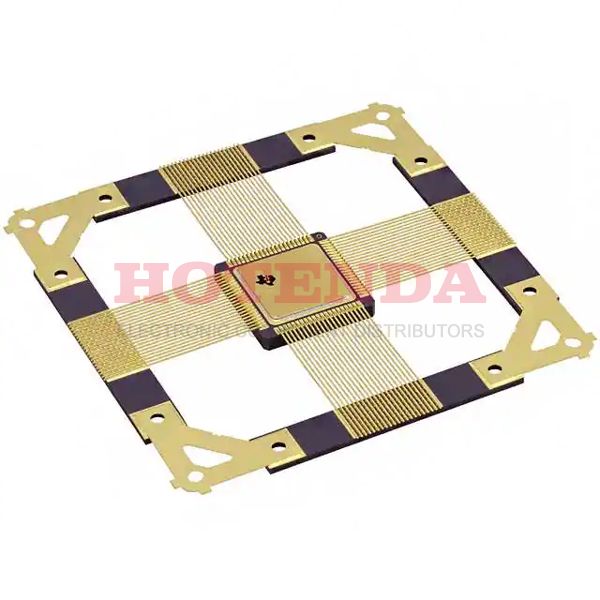

1MB 1M x 8 FLASH ARM7® 16/32-Bit Microcontroller TMS470 Series 470R1 84 Pin 60MHz 84-CBFQFP Exposed Pad and Tie Bar
SOT-23
SM470R1B1MHFQS Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 5 days ago)
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
84-CBFQFP Exposed Pad and Tie Bar
Number of Pins
84
Operating Temperature
-55°C~220°C TA
Packaging
Bulk
Series
TMS470
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
84
Terminal Position
QUAD
Terminal Form
FLAT
Terminal Pitch
0.5mm
Frequency
60MHz
Base Part Number
470R1
Pin Count
84
Operating Supply Voltage
3V
Supply Voltage-Max (Vsup)
2.05V
Interface
CAN, I2C, SCI, SPI
Memory Size
1MB
Oscillator Type
External
Number of I/O
46
RAM Size
64K x 8
Voltage - Supply (Vcc/Vdd)
1.71V~2.05V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Core Processor
ARM7®
Peripherals
DMA, POR, PWM, WDT
Program Memory Type
FLASH
Core Size
16/32-Bit
Program Memory Size
1MB 1M x 8
Connectivity
CANbus, I2C, SCI, SPI
Bit Size
32
Data Converter
A/D 12x10b
Watchdog Timer
Yes
Has ADC
YES
DMA Channels
YES
Data Bus Width
16b
PWM Channels
YES
DAC Channels
NO
Number of Timers/Counters
1
Core Architecture
ARM
Boundary Scan
YES
Low Power Mode
YES
Number of Programmable I/O
12
Format
FIXED-POINT
Integrated Cache
NO
Number of Serial I/Os
12
Number of DMA Channels
16
Height
3mm
Length
13.8mm
Width
13.8mm
Thickness
2.67mm
Radiation Hardening
No
RoHS Status
Non-RoHS Compliant
Lead Free
Contains Lead
In-Stock:2521 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$419.02000
$419.02
10
$406.41700
$4064.17
SM470R1B1MHFQS Product Details
SM470R1B1MHFQS Description
The SM470R1B1MHFQS is a member of the SM470R1x family of general-purpose 16-/32-bit reduced instruction set computer (RISC) microcontrollers. The B1M microcontroller offers high performance using the high-speed ARM7TDMI 16-/32-bit RISC central processing unit (CPU), resulting in a high instruction throughput while maintaining greater code efficiency.
SM470R1B1MHFQS Features
High-Performance Static CMOS Technology
SM470R1x 16-/32-Bit RISC Core (ARM7TDMI?)
Integrated Memory
470+ System Module
Direct Memory Access (DMA) Controller
Zero-Pin Phase-Locked Loop (ZPLL)-Based Clock Module With Prescaler
46 Dedicated General-Purpose I/O (GIO) Pins and
47 Additional Peripheral I/Os
Sixteen External Interrupts
On-Chip Scan-Base Emulation Logic, IEEE
Standard 1149.1(1) (JTAG) Test-Access Port
Available in KGD, HFQ, HKP, and PGE Packages
SM470R1B1MHFQS Applications
Controlled Baseline
One Assembly/Test Site
One Fabrication Site
Extended Product Life Cycle
Extended Product-Change Notification
Product Traceability
Related Products
Similar Embedded - Microcontrollers from Texas Instruments and other manufacturers
