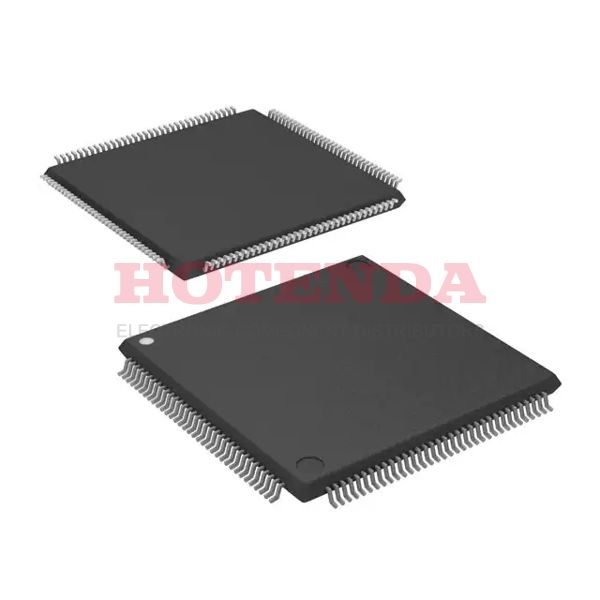

Name: RM48L940DPGET
Brand: Texas Instruments
SKU: RM48L940DPGET
Availability: InStock

new-10%

RM48L940DPGET

Manufacturer part number:RM48L940DPGET

Manufacturer:Texas Instruments

Description:3MB 3M x 8 FLASH ARM® Cortex®-R4F 16/32-Bit Microcontroller Hercules™ RM4 ARM® Cortex®-R4 Series 48L940 144 Pin 200MHz 1.2V 144-LQFP

Case Package:SOT-23

Datasheet:RM48L940DPGET Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Number of Pins	144
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	Hercules™ RM4 ARM® Cortex®-R4
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Frequency	200MHz
Base Part Number	48L940
Supply Voltage-Min (Vsup)	1.14V
Interface	CAN, EBI/EMI, Ethernet, I2C, LIN, SCI, SPI, UART, USART
Memory Size	3MB
Oscillator Type	External
Number of I/O	64
RAM Size	256K x 8
Voltage - Supply (Vcc/Vdd)	1.14V~1.32V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-R4F
Peripherals	DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	3MB 3M x 8
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, LINbus, MibSPI, SCI, SPI, UART/USART
Bit Size	32
Data Converter	A/D 24x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	NO
DAC Channels	NO
Density	24 Mb
Core Architecture	ARM
EEPROM Size	64K x 8
On Chip Program ROM Width	8
Number of UART Channels	2
Height Seated (Max)	1.6mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

RM48L940DPGET Product Details

RM48L940DPGET Overview

There is a 144-LQFP package available. The board has 64 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16/32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~105°C TA is the temperature range at which this Microcontroller operates. Hercules™ RM4 ARM® Cortex®-R4-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 3MB 3M x 8. Powered by a ARM® Cortex®-R4F Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 144. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 1.2V volts. A total of YES DMA channels are available. This IC part has a memory size of 3MB. There are a number of alternatives to the base part number 48L940 that you can find. Performing well when operated at frequency 200MHz can be achieved. Using NO PWM channels, the device works. On the chip, there are 144 pins that can be accessed. The CPU is based on ARM cores. In addition, it has 8 UART channels to choose from.
