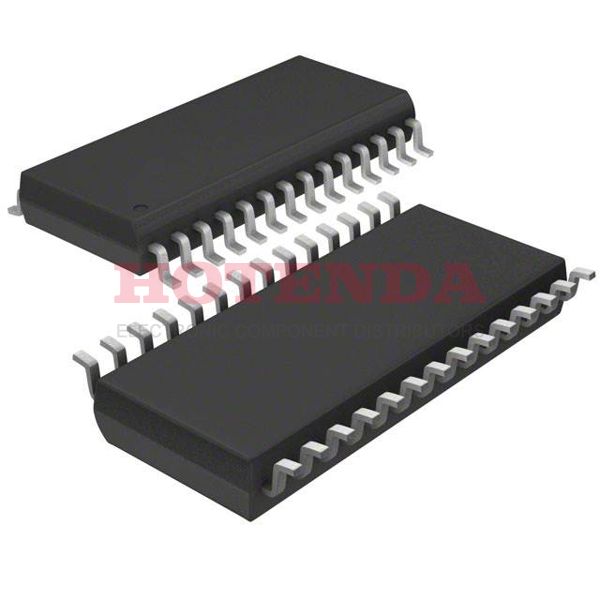

Name: MAX3243EIPWRG4
Brand: Texas Instruments
SKU: MAX3243EIPWRG4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173, 4.40mm Width)
Number of Pins	28
Weight	117.508773mg
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory	Line Driver or Receivers
Voltage - Supply	3V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	3
Supply Voltage	3.3V
Base Part Number	MAX3243
Pin Count	28
Operating Supply Voltage	5V
Nominal Supply Current	1mA
Logic Function	Receiver, Transceiver
Data Rate	500kbps
Differential Output	NO
Output Polarity	INVERTED
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	3/5
Duplex	Full
Receiver Hysteresis	500mV
Number of Drivers	3
Number of Transceivers	1
Supply Voltage1-Nom	5V
Number of Receivers	5
Height	1.2mm
Length	9.7mm
Width	4.4mm
Thickness	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX3243EIPWRG4 Product Details

MAX3243EIPWRG4 Overview

Driver ICs with enhanced 28-TSSOP (0.173, 4.40mm Width) packages are excellent for driving LEDs with common characteristics.In the Tape & Reel (TR) package, this receiver is mounted.Being a Transceiver can transceiver, this part has empowered many solutions to serve for a variety of applications.You can place this wide receiver to any Surface Mount-type PCB or development board.This differential driver requires a 3V~5.5V power supply.At any given time, there can be up to 3/5 eligible receivers/drivers for this electronic part.Applications with operating temperatures of -40°C~85°C have been designed primarily for this ic receiver.With a voltage range of 3.3V, this driver IC can operate efficiently.Wide receiver has 28 terminations built in for driving or receiving signals from data.As a standard package, this transceiver comes with a 28-pin layout that follows the market standard.As the base part number MAX3243 identifies the product type, temperature, package, etc., you can try searching with it to get more variants of this part.Wide receiver with enhanced power dissipation control, 28-pin.Through optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size is reduced dramatically.As a result of the design of this transceiver module, the input voltage supply is designed to operate at 5V.3 volts.A subcategory named Line Driver or Receivers can be used to group this rf transceiver module.ICs implement a total of 1 transceivers.There are also 5 receivers in it as well.On the part, 3 drivers are embedded in order to facilitate the operation of the device.
