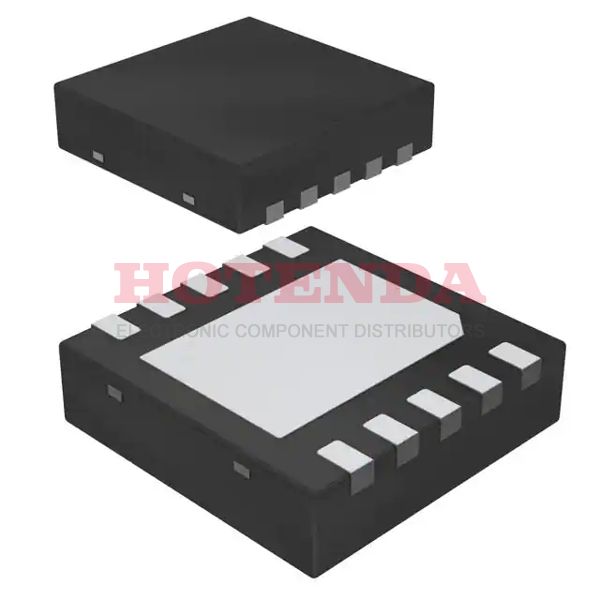

LP3996SDX-2828 Overview
This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 10-WFDFN Exposed Pad package. There are 10 terminations on the gadget. The IC chip's output type is Fixed. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA 300mA. IC voltage regulator has a sum of 10 pins. To ensure prompt, sufficient performance, this part features 2 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 10. FYI, the basic part number for this IC regulator is LP3996. This regulator IC is a typical Other Regulators. It operates in the 100μA Quiescent Current state.
LP3996SDX-2828 Features
110mV dropout voltage
Other Regulators subtageroy
LP3996SDX-2828 Applications
There are a lot of Texas Instruments
LP3996SDX-2828 Linear Voltage Regulators applications.
- Home electric appliance
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
