LP3996SD-2828 Overview

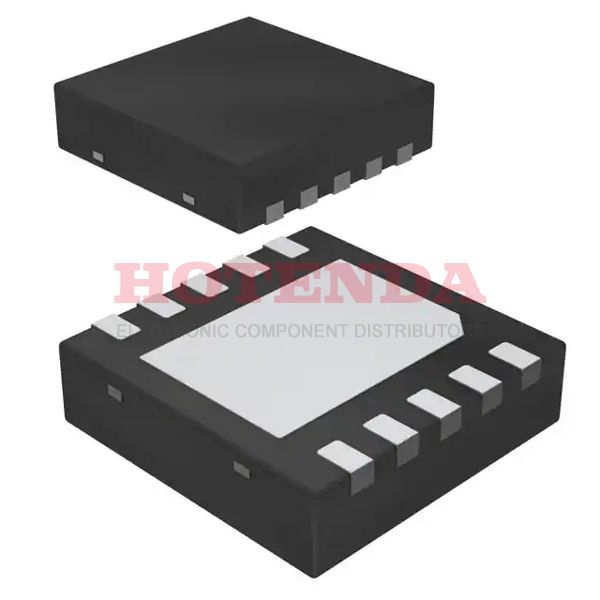

Deliveries are in Tape & Reel (TR) cases. The package is in a 10-WFDFN Exposed Pad case. Basically, the voltage regulator chip is made up of 10 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~85°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 150mA 300mA on this regulator. The chip consists of a total of 10 pins in total. This IC regulator has a total of 2 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 10-shaped. As an FYI, this IC voltage regulator has the basic part number LP3996. The maximal output current reaches 300mA to meet the operating requirements. It operates in the 35μA Quiescent Current state.
LP3996SD-2828 Features
110mV dropout voltage
LP3996SD-2828 Applications
There are a lot of Texas Instruments
LP3996SD-2828 Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
