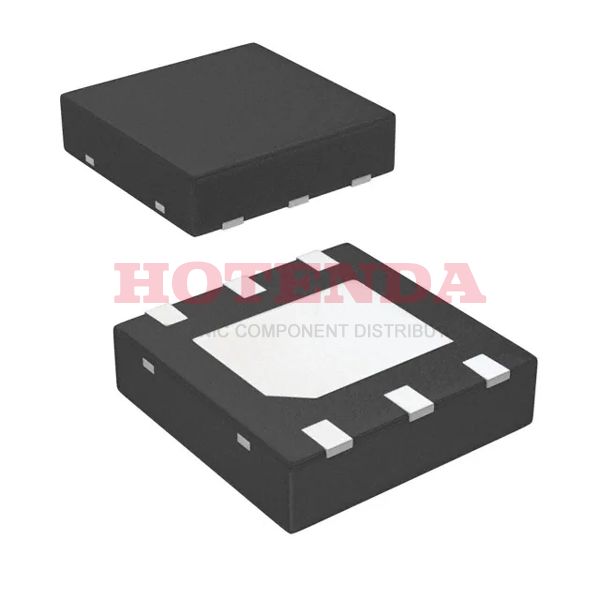

LP3990SD-1.5 Overview
A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 6-WDFN Exposed Pad case is used for packaging. As you can see, the IC chip has 6 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~85°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 150mA. There are 6 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. 6 pins are on the chip. For your information, this regulator's basic part number is LP3990. There is a way of packing the regulator that is called TAPE AND REEL. It operates in the 43μA Quiescent Current state.
LP3990SD-1.5 Features
TAPE AND REEL method of packing
LP3990SD-1.5 Applications
There are a lot of Texas Instruments
LP3990SD-1.5 Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
