LP3986TL-3028

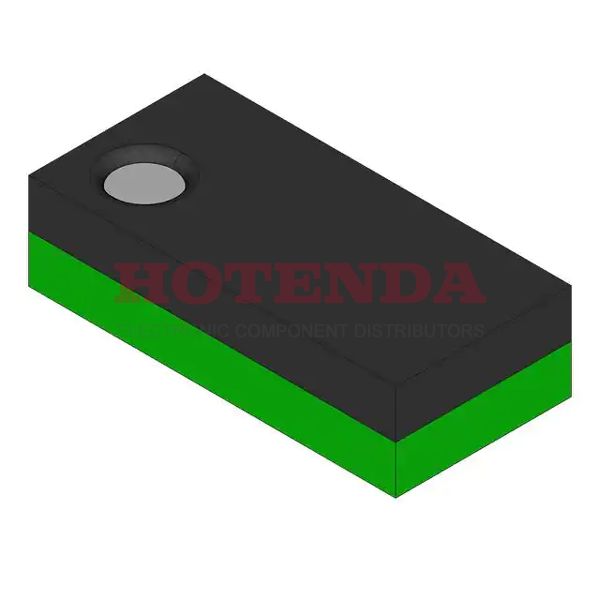

  • LP3986TL-3028 - Fixed 0.5mm PMIC 8
  • LP3986TL-3028 - Fixed 0.5mm PMIC 8

LP3986TL-3028

LP3986TL-3028

Texas Instruments

Fixed 0.5mm PMIC 8

SOT-23

LP3986TL-3028 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Number of Pins 8
PackagingCut Tape
JESD-609 Code e0
Pbfree Code no
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish TIN LEAD
Max Operating Temperature125°C
Min Operating Temperature -40°C
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Pin Count8
Number of Outputs 2
Output Type Fixed
Polarity Positive
Power Dissipation-Max 250mW
Quiescent Current130μA
Accuracy 2.5 %
Voltage - Output 3V
Output Voltage 1 3V
Min Input Voltage 2.7V
Max Input Voltage 6V
Output Current1-Max 0.15A
Output Voltage 2 2.8V
Output Current2-Max 0.15A
Length 1.55mm
Height Seated (Max) 0.6mm
Width 1.55mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
Lead Free Contains Lead
In-Stock:3127 items

LP3986TL-3028 Product Details

LP3986TL-3028 Description


The LP3986TL-3028 is a Dual Micropower 150 mA Ultra Low-Dropout CMOS Voltage Regulator in DSBGA Package.



LP3986TL-3028 Features


  • Miniature 8-4/0 DSBGA Package

  • Stable With 1μF Ceramic and High-Quality Tantalum Output Capacitors

  • Fast Turn-on

  • Two Independent Regulators

  • Logic Controlled Enable

  • Current and Thermal Protection



LP3986TL-3028 Applications


  • CDMA Cellular Handsets

  • GSM Cellular Handsets

  • Portable Information Appliances

  • Portable Battery Applications
