LP3986BL-2626 Overview

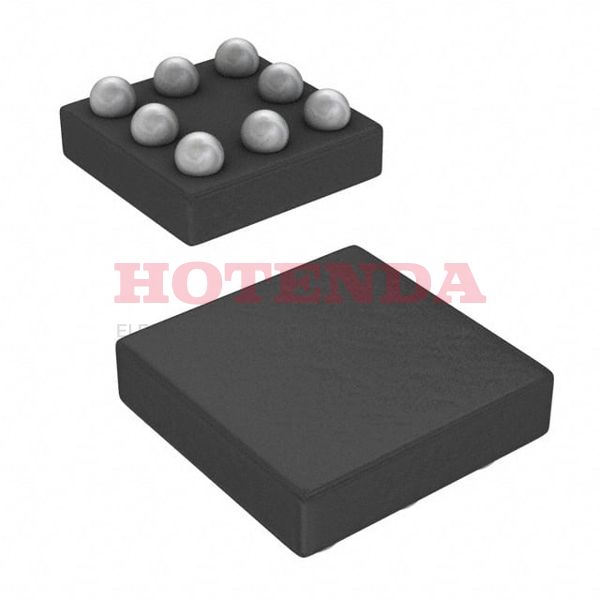

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 8-TFBGA case. On the regulater IC chip, there are a total of 8 terminations. Output type Fixed. This component features 2 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 150mA. A total of 8 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 2 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 8 pins on the chip. As an FYI, this IC voltage regulator has the basic part number LP3986. As you can see from the picture, the regulator IC is packed in a certain way.
LP3986BL-2626 Features
60mV dropout voltage
TAPE AND REEL method of packing
LP3986BL-2626 Applications
There are a lot of Texas Instruments
LP3986BL-2626 Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
