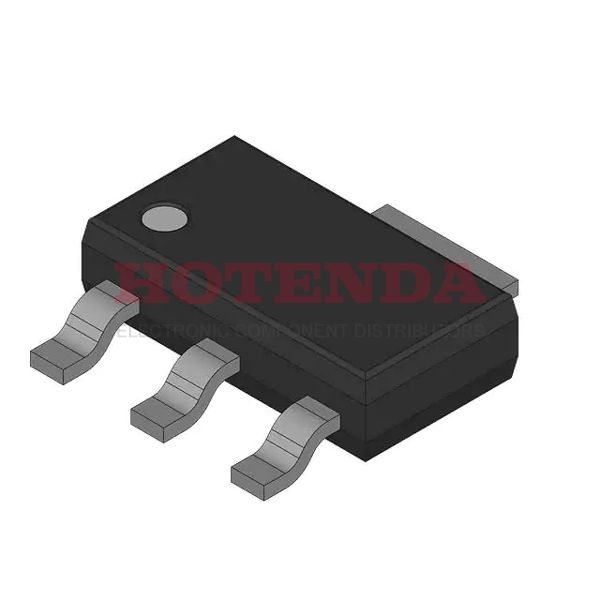

LP3961EMPX-2.5 Overview
Deliveries are in Tape & Reel (TR) cases. The package is in a TO-261-5, TO-261AB case. Basically, the voltage regulator chip is made up of 5 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The chip consists of a total of 5 pins in total. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 5-shaped. As an FYI, this IC voltage regulator has the basic part number LP3961. Packing the voltage regulator IC in this way is called TAPE AND REEL packing. The maximal output current reaches 800mA to meet the operating requirements. It operates in the 4mA Quiescent Current state.
LP3961EMPX-2.5 Features
240mV dropout voltage
TAPE AND REEL method of packing
LP3961EMPX-2.5 Applications
There are a lot of Texas Instruments
LP3961EMPX-2.5 Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
