LP38852MR-ADJ Overview

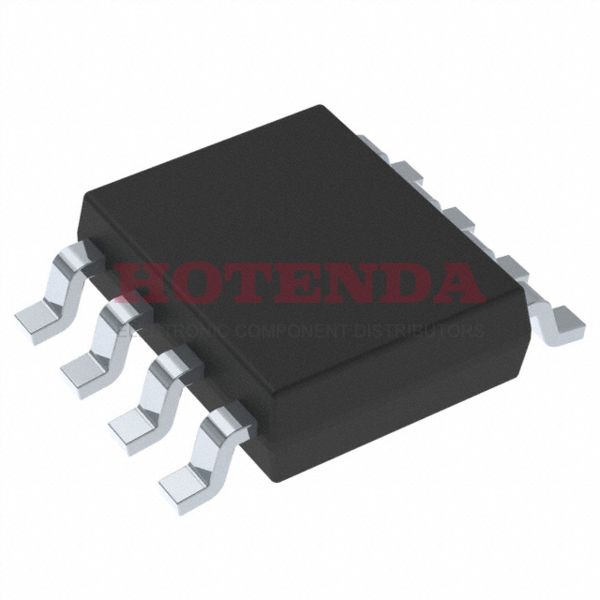

A Tube case is used to deliver the Voltage Regulated IC. A 8-PowerSOIC (0.154, 3.90mm Width) case is used for packaging. As you can see, the IC chip has 8 terminations. Regulator IC chip's output type is Adjustable. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 8 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 8 pins are on the chip. For your information, this regulator's basic part number is LP38852. There is a way of packing the regulator that is called RAIL. To meet operation requirements, the voltage regulator IC has a maximum output current of 1.5A. It operates in the 8.5mA Quiescent Current state.
LP38852MR-ADJ Features
130mV dropout voltage
RAIL method of packing
LP38852MR-ADJ Applications
There are a lot of Texas Instruments
LP38852MR-ADJ Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
