Name: LP2980AIM5X-1.8
Brand: Texas Instruments
SKU: LP2980AIM5X-1.8
Price: 0.15000 USD
Availability: InStock

new-10%

LP2980AIM5X-1.8

Manufacturer part number:LP2980AIM5X-1.8

Manufacturer:Texas Instruments

Description:0.95mm PMIC SOT-23

Case Package:SOT-23

Datasheet:LP2980AIM5X-1.8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	SOT-23
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-G5
Number of Outputs	1
Qualification Status	Not Qualified
Output Voltage 1	1.8V
Input Voltage (Min)	2.8V
Input Voltage (Max)	16V
Dropout Voltage1-Nom	0.12V
Output Voltage1-Max	1.809V
Output Voltage1-Min	1.791V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	2.5%
Output Current1-Max	0.05A
Operating Temperature TJ-Max	125°C
Input Voltage Absolute-Max	16V
Adjustability	FIXED
Line Regulation-Max (%/V)	0.0076%
Operating Temperature TJ-Min	-40°C
Length	2.92mm
Height Seated (Max)	1.22mm
Width	1.6mm
RoHS Status	Non-RoHS Compliant
Lead Free	Lead Free

LP2980AIM5X-1.8 Product Details

LP2980AIM5X-1.8 Overview

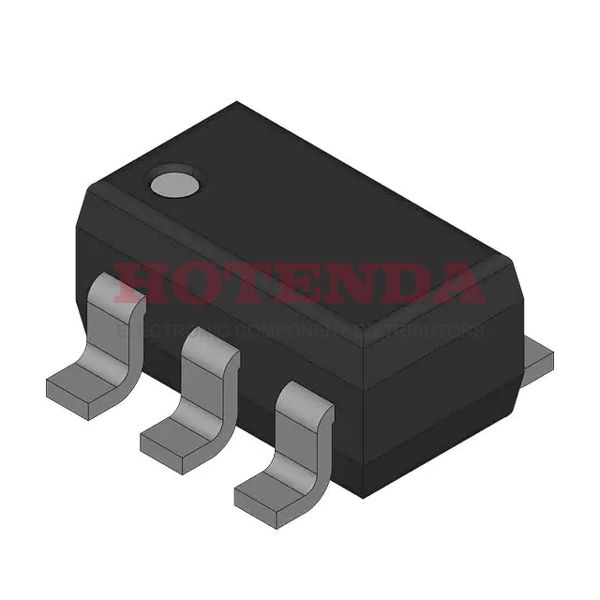

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a SOT-23 case. On the regulater IC chip, there are a total of 5 terminations. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. An example of such a component would be this Other Regulators component. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. As you can see from the picture, the regulator IC is packed in a certain way.
