LMK03001ISQX/NOPB Overview
This clock IC is packaged using the Tape & Reel (TR) method. The 48-WFQFN Exposed Pad package includes this clock generator. In the reflowing process, this clock generator ic is able to maintain a maximum temperature of 260. In it, there are 48 terminations to be found. This time clock generator should be voltaged at 3.3V. A clock generator's input is called LVCMOS, LVDS, LVPECL and it is designed as the input for this clock generator. For full access to the electronic component's capabilities, 1 circuits are implemented. A clock-based RF synthesizer that provides a max frequency of 1.57GHz is available. With the Surface Mount, it is easy to install this electric component on the panel. This clock PLL works with a supply voltage of 3.15V~3.45V. Using the test statistics, it is estimated that the ambient temperature should be set to -40°C~85°C. A frequency synthesizer which is compatible with the LVDS, LVPECL logic levels is presented here. A Clock Conditioner is a classification for the electronic part in question. Microprocessors are specifically designed to use this clock-generating IC, which has a 48-bit output. This part number LMK03001 is related to the following electrical components. PF synthesizers is equipped with 48 pins. Clock PLL has 9 signal outputs to maximi9e output frequency.
LMK03001ISQX/NOPB Features

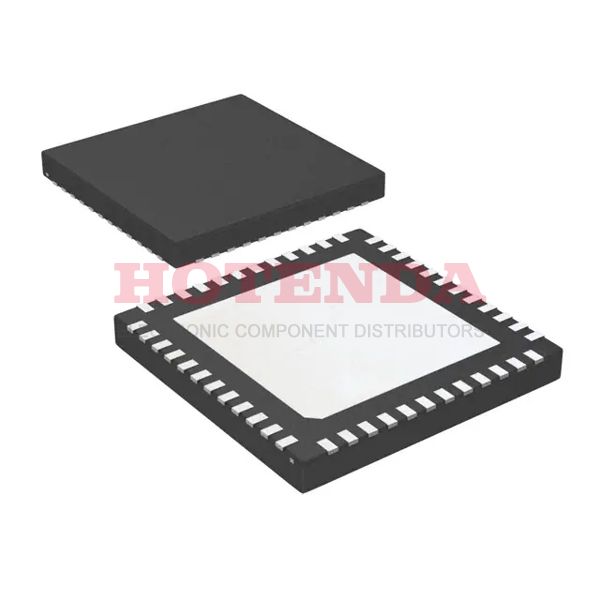

Available in the 48-WFQFN Exposed Pad
Supply voltage of 3.3V
LMK03001ISQX/NOPB Applications
There are a lot of Texas Instruments
LMK03001ISQX/NOPB Clock Generators applications.
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
- Line cards used in telephone exchange
- Fiber Channel
- PCI express cards
