LM2937IMPX-12 Overview

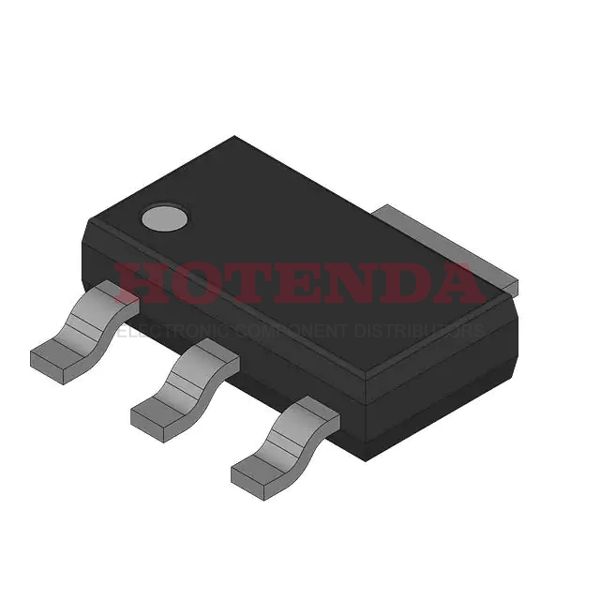

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-261-4, TO-261AA case. On the regulater IC chip, there are a total of 4 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~85°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 400mA. A total of 4 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 4 pins on the chip. As an FYI, this IC voltage regulator has the basic part number LM2937. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 500mA. It operates in the 2mA Quiescent Current state.
LM2937IMPX-12 Features
500mV dropout voltage
TAPE AND REEL method of packing
LM2937IMPX-12 Applications
There are a lot of Texas Instruments
LM2937IMPX-12 Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
