Name: LM2831XSDX
Brand: Texas Instruments
SKU: LM2831XSDX
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Number of Pins	6
Operating Temperature	-40°C~125°C TJ
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Switching Regulator or Controllers
Technology	BICMOS
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.95mm
Base Part Number	LM2831
Function	Step-Down
Number of Outputs	1
Efficiency	93 %
Voltage - Input (Max)	5.5V
Output Voltage	4.5V
Output Type	Adjustable
Max Output Current	1.5A
Operating Supply Voltage	5.5V
Voltage - Input (Min)	3V
Input Voltage-Nom	5V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Voltage - Output (Min/Fixed)	0.6V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	1.6MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Height Seated (Max)	0.8mm
Length	3mm
Width	3mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

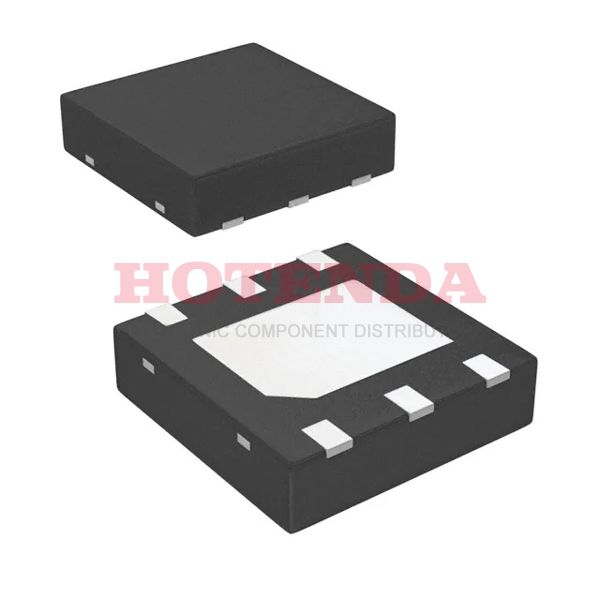

LM2831XSDX Product Details

LM2831XSDX Overview

This harley voltage regulator utilizes the Tape & Reel (TR) package for optimized performance. As you can see, this harley voltage regulator contains 6 terminations. There are two types of analog ICs in this voltage regulator 12v: SWITCHING REGULATOR ICs, which are the ones used in older voltage regulator 12vs. In order to save space, this voltage regulator is packaged in the 6-WDFN Exposed Pad package. 1 outputs of voltage regulator are configured. On the output pins of this DC DC switching regulator, there is a Adjustable output generated. Surface Mount-mounting is compatible with this switching regulator. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~125°C TJ. 1.6MHz is the switching frequency of this DC-DC switching regulator. Despite its low input voltage, this voltage regulator can operate. The output voltage of this voltage regulator (Min/Fixed) amounts to 0.6V volts. 5.5V volts is DC DC switching regulator's maximum input voltage. This voltage regulator's peak reflow temperature is so high as to make it virtually indestructible. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 5V. The regulator voltage that you are looking at belongs to the subcategory Switching Regulator or Controllers. In this case, the DC/DC regulator belongs to the family LM2831. The voltage DC DC switching regulator can provide is up to 4.5V volts. To operate the voltage regulator 12v, 6 pins are required. Voltage regulator's maximal output current reaches 1.5A A to meet the operation requirements. A harley voltage regulator operates with a 5.5V supply voltage.
