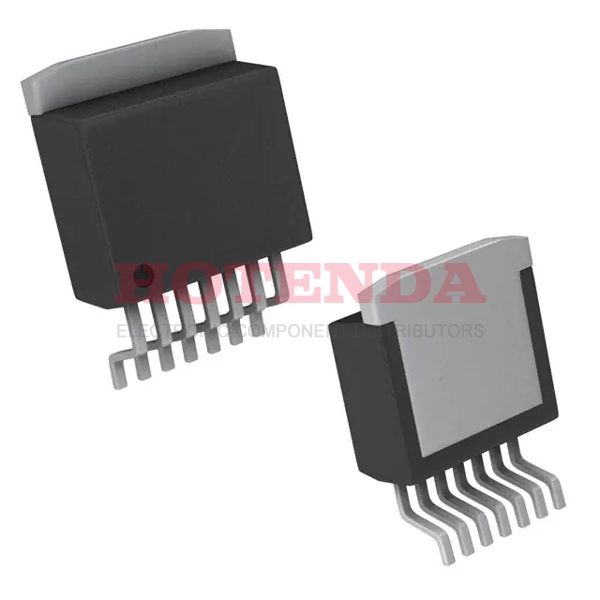

LM2677S-3.3 Overview
It uses the Tube package in order to optimize the performance of this voltage regulator. In this voltage regulator, there are 7 terminations. This regulator voltage is equipped with a type of analog integrated circuit that is called a SWITCHING REGULATOR voltage regulator. In order to save space, this harley voltage regulator is available in the TO-263-8, D2Pak (7 Leads + Tab), TO-263CA package. The voltage regulator is configured with 1 outputs. ICs such as this voltage regulator are capable of generating Fixed outputs through their output pins. Surface Mount-mounting is compatible with this switching regulator. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~125°C TJ. A DC-DC switching regulator such as this one switches at 260kHz. Voltage regulators like this one can operate at least with 8V as the dc to dc voltage regulator's minimum input voltage. Voltage regulator's input voltage can reach 40V. This voltage regulator's peak reflow temperature is so high as to make it virtually indestructible. Voltage regulator is designed to provide a nominal input voltage of 12V to meet the operation requirements. I would like to point out that this voltage regulator belongs to the Switching Regulator or Controllers subcategory. In this case, the DC/DC regulator belongs to the family LM2677. The voltage DC DC switching regulator can produce is 3.3V volts. The switching regulator operation of the system is controlled by 7 pins. In order to meet the requirements of the switching regulator operation, the maximum output current reaches 5A A. In the SIMPLE SWITCHER? family, this part palys an important role in DC DC switching regulator's traget applications. DC-DC switching regulator with supply voltage 40V. Voltage regulator consumes 4.2mA A of quiescent current without being affected by outside forces.
LM2677S-3.3 Features
1 outputs
Peak reflow temperature (Cel) of 235
7 pins
Operating supply voltage of 40V
