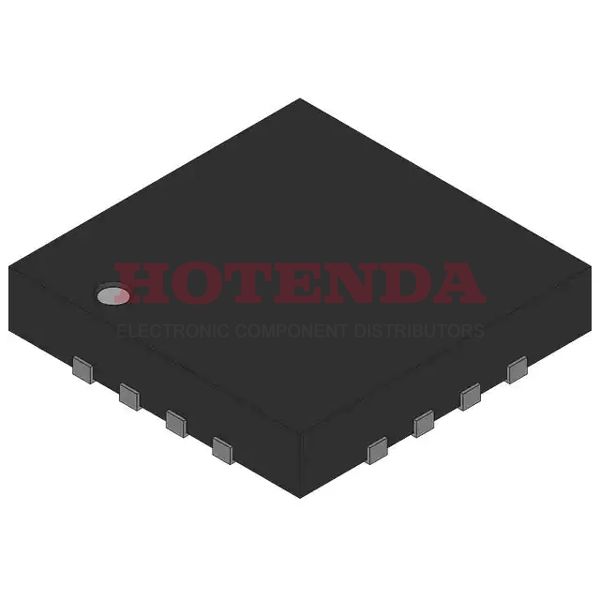

LM2675LD-3.3 Description
The LM2675LD-3.3 is a SIMPLE SWITCHER? Power Converter High-Efficiency 1-A Step-Down Voltage Regulator. It provides all the active functions for a step-down (buck) switching regulator, capable of driving a 1-A load current with excellent line and load regulation.
LM2675LD-3.3 Features
Efficiency up to 96%
Available in 8-Pin SOIC, PDIP, and 16- Pin WSON Package
Requires only 5 External Components
3.3-V, 5-V, 12-V, and Adjustable Output Versions
Adjustable Version Output Voltage Range: 1.21 V to37V
+1.5% Maximum Output Voltage Tolerance Over
Line and Load Conditions
Ensured 1-A Output Load Current
Wide Input Voltage Range: 8 V to 40 V
260-kHz Fixed Frequency Internal Oscillator
TTL Shutdown Capability, Low-Power Standby Mode
Thermal Shutdown and Current Limit Protection
LM2675LD-3.3 Applications
Simple High Efficiency (>90%) Step-Down (Buck)
Regulator
Efficient Preregulator for Linear Regulators
Positive-to-Negative Converter
