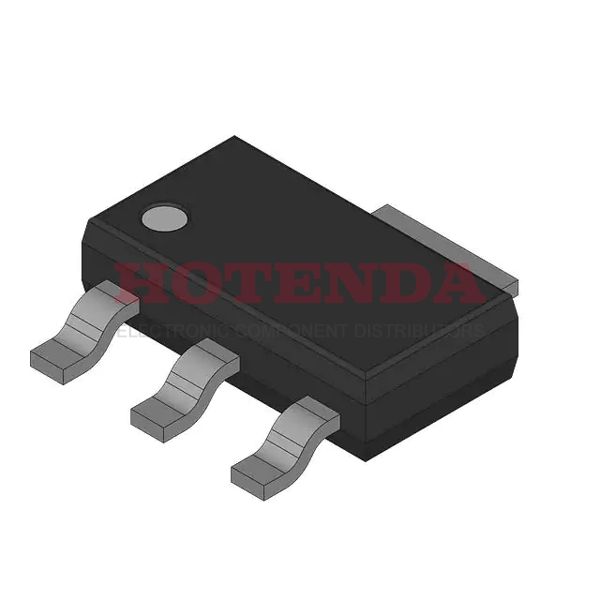

LM1117MP-3.3

LM1117MP-3.3 Description

The LM1117MP-3.3 is an 800-mA, Low-Dropout Linear Regulator with a dropout of 1.2 V at 800 mA of load current.

LM1117MP-3.3 Features

• For a newer drop-in alternative, see the TLV1117

• Available in 1.8 V, 2.5 V, 3.3 V, 5 V, and adjustable versions

• Space-saving SOT-223 and WSON packages

• Current limiting and thermal protection

• Output current: 800 mA

• Line regulation: 0.2% (maximum)

• Load regulation: 0.4% (maximum)

• Temperature range:

  -LM1117: 0°C to 125°C

  -LM1117|: -40C to 125°C

LM1117MP-3.3 Applications

• AC drive power stage modules

• Merchant network and server PSU

• Industrial AC/DC

• Ultrasound scanners

• Servo drive control modules
