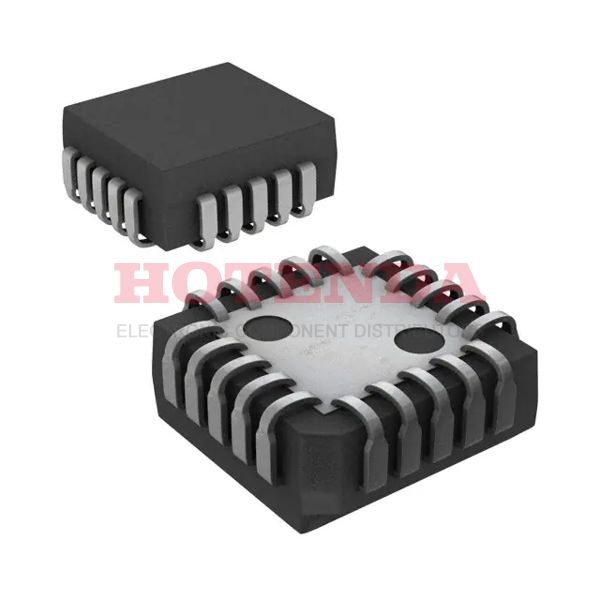

Name: DS36954VX
Brand: Texas Instruments
SKU: DS36954VX
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-LCC (J-Lead)
Number of Pins	20
Operating Temperature	0°C~70°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Number of Terminations	20
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Line Driver or Receivers
Technology	BIPOLAR
Voltage - Supply	4.75V~5.25V
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	250
Number of Functions	4
Supply Voltage	5V
Base Part Number	DS36954
Pin Count	20
Operating Supply Voltage	5V
Power Supplies	5V
Nominal Supply Current	90mA
Data Rate	10 Mbps
Differential Output	YES
Protocol	RS422, RS485
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Number of Drivers/Receivers	4/4
Receiver Number of Bits	4
Duplex	Half
Receiver Hysteresis	60mV
Number of Drivers	4
Number of Transceivers	1
Simplex/Duplex	Half Duplex
High Level Input Current-Max	0.00002A
Length	8.89mm
Width	8.89mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

DS36954VX Product Details

DS36954VX Overview

This driver chip is excellent for driving common LEDs due to its enhanced 20-LCC (J-Lead) package.Tape & Reel (TR) package is used for this receiver.As a Transceiver can transceiver, this part has enabled many applications to be served.PCBs or development boards with Surface Mount-types can accommodate this wide receiver.This differential driver requires a 4.75V~5.25V power supply.At any given time, there can be up to 4/4 eligible receivers/drivers for this electronic part.In most applications, this ic receiver is used in environments where 0°C~70°C is the operating temperature.Wide receiver can operate within the range of 5V supply voltages efficiently.Integrated into this wide receiver are 20 terminations that are used for driving and receiving signals from data.In this package, you will find 20 market-standard pinouts for this transceiver.You can search with DS36954 to get more variants of this part, since it identifies the product type, temperature, package, etc.It is a 20-pin driver IC with enhanced power dissipation controls.Its package size is drastically reduced by downsizing ICs and utilizing high-density Surface Mount mounting techniques.There are typically 4 bits of resolution specified in the specifications of this receiver.There are two types of input voltage supply available for this IC, 5V.Line Driver or Receivers is a subcategory of this rf transceiver module.This driver IC is designed to operate from a 5V power supply.There are 1 transceivers in total implemented by this IC.On the part, 4 drivers are embedded in order to facilitate the operation of the device.
