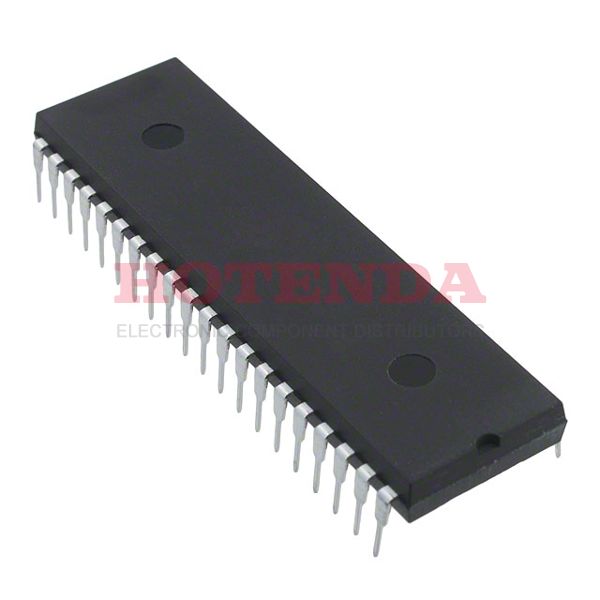

4KB 4K x 8 OTP COP8 8-Bit Microcontroller COP8™ 8SA Series COP8SAC7 10MHz 3.3V 40-DIP (0.600, 15.24mm)
SOT-23
COP8SAC740N9 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Through Hole
Package / Case
40-DIP (0.600, 15.24mm)
Surface Mount
NO
Operating Temperature
0°C~70°C TA
Packaging
Tube
Series
COP8™ 8SA
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
40
HTS Code
8542.31.00.01
Terminal Position
DUAL
Supply Voltage
3.3V
Terminal Pitch
2.54mm
Reach Compliance Code
unknown
Frequency
10MHz
Base Part Number
COP8SAC7
Pin Count
40
JESD-30 Code
R-PDIP-T40
Supply Voltage-Max (Vsup)
5.5V
Supply Voltage-Min (Vsup)
2.7V
Interface
SPI
Memory Size
4kB
Oscillator Type
Internal
Number of I/O
36
RAM Size
128 x 8
Voltage - Supply (Vcc/Vdd)
2.7V~5.5V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER
Core Processor
COP8
Peripherals
POR, PWM, WDT
Program Memory Type
OTP
Core Size
8-Bit
Program Memory Size
4KB 4K x 8
Connectivity
Microwire/Plus (SPI)
Bit Size
8
Access Time
10 μs
Has ADC
NO
DMA Channels
NO
PWM Channels
YES
DAC Channels
NO
Length
52.235mm
Height Seated (Max)
5.334mm
Width
15.24mm
RoHS Status
Non-RoHS Compliant
Lead Free
Contains Lead
In-Stock:4305 items
COP8SAC740N9 Product Details
COP8SAC740N9 Description
The COP8SAC740N9 is an 8-Bit CMOS ROM Based and One-Time Programmable (OTP) Microcontroller with 1k to 4k Memory, Power On Reset, and Very Small Packaging.
COP8SAC740N9 Features
Low-cost 8-bit OTP microcontroller
OTP program space with reading/write protection (fully secured)
Quiet Design (low radiated emissions)
Multi-Input Wakeup pins with optional interrupts (4 to 8 pins)
8 bytes of user storage space in EPROM
User selectable clock options
— Crystal/Resonator options
— Crystal/Resonator option with the on-chip bias resistor
— External oscillator
— Internal R/C oscillator
Internal Power-On Reset — user selectable
WATCHDOG and Clock Monitor Logic — user selectable
Up to 12 high current outputs
COP8SAC740N9 Applications
Low power applications
Related Products
Similar Embedded - Microcontrollers from Texas Instruments and other manufacturers
