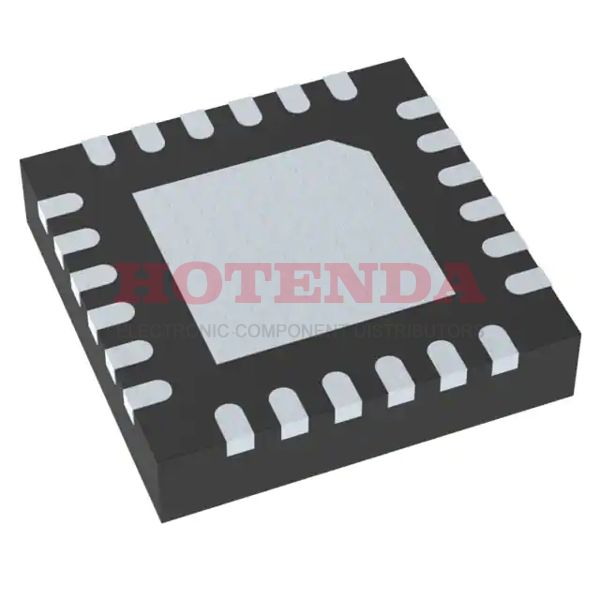

CDCE421RGERG4 Overview
Tape & Reel (TR)-method packaging is used for clock ICs. A Clock PLL is included with the 24-VFQFN Exposed Pad package. A maximum temperature of 260 can be sustained by this clock generator ic during reflowing. As you can see, it consists of 24 terminations. Basically, a voltage of 3.3V should be applied to this electronic frequency generator. This Clock PLL will be fed by LVCMOS, Crystal as its input. To access the electronic component's full performance, 1 circuits are implemented. There is a maximum frequency of 1.2GHz Max with this clock-based frequency generator. With the Surface Mount, it is easy to install this electric component on the panel. There should be 3V~3.6V provided with this RF synthesizer. The temperature should be set at -40°C~85°C to ensure reliable performance. This is a clock generator compatible with LVDS, LVPECL logic levels. As far as this electronic part is concerned, it can be classified as a Clock Generator component. Microprocessors are specifically designed to use this clock-generating IC, which has a 24-bit output. This part number is related to its related electronic parts. There are a number of 24 pins that are available on the frequency synthesizers. The supply voltage should be maintained at 3.3V for high efficiency. At a frequency of 2.35GHz, frequency generator is capable of achieving high efficiency.
CDCE421RGERG4 Features
Available in the 24-VFQFN Exposed Pad
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CDCE421RGERG4 Applications
There are a lot of Texas Instruments CDCE421RGERG4 Clock Generators applications.
- Main oscillator in receiver
- Clock signals to the high-speed Digital RF circuits
- Clock generation systems
- Navigation, positioning and surveillance system for aircraft, ships and ships
- Clock recovery
- Vector network analyzers (VNA)
- Aerospace and defense
- Signal demodulation
- Frequency synthesis
- HDD recorders
