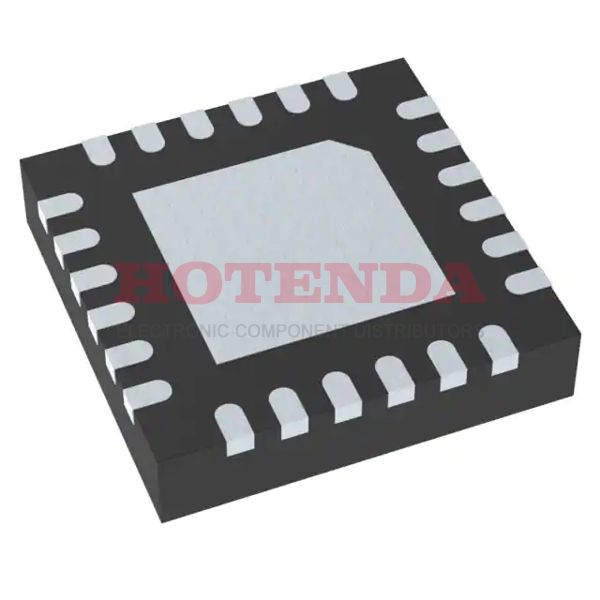

CDC421312RGETG4 Overview
Clock generator is packaged in the way of Tape & Reel (TR). This clock generator is embedded in the 24-VFQFN Exposed Pad package. When reflowed, this frequency generator can withstand a maximum temperature of 260. There are 24 terminations found in the file. Basically, a voltage of 3.3V should be applied to this electronic frequency generator. This Clock PLL will be fed by LVCMOS, Crystal as its input. A total of 1 circuits are implemented to access the full performance of the electrical part. An up to 312.5MHz frequency is provided by this clock-based RF synthesizer. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. As long as you provide 3V~3.6V supply voltage, it will work. The ambient temperature should be set at -40°C~85°C, which is estimated by the test statistics. It's compatible with LVPECL logic levels. As far as this electronic part is concerned, it can be classified as a Clock Generator component. Microprocessors are specifically designed to use this clock-generating IC, which has a 24-bit output. This part number CDC421312 is related to the following electrical components. The frequency generator is equipped with 24 pins. There is a maximum supply voltage of 3.3V that electronic frequency generator can handle. Using a frequency of 31.25MHz allows frequency synthesizer to achieve high efficiencies.
CDC421312RGETG4 Features
Available in the 24-VFQFN Exposed Pad
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CDC421312RGETG4 Applications
There are a lot of Texas Instruments CDC421312RGETG4 Clock Generators applications.
- Symbol synchronization
- Deep space exploration
- Walkie-talkies
- Aerospace and defense
- Test and instrumentation equipment
- Phase modulation cellular systems
- Frequency synthesis
- Microprocessor clock multipliers
- Antenna automatic tracking
- Digital switching systems
