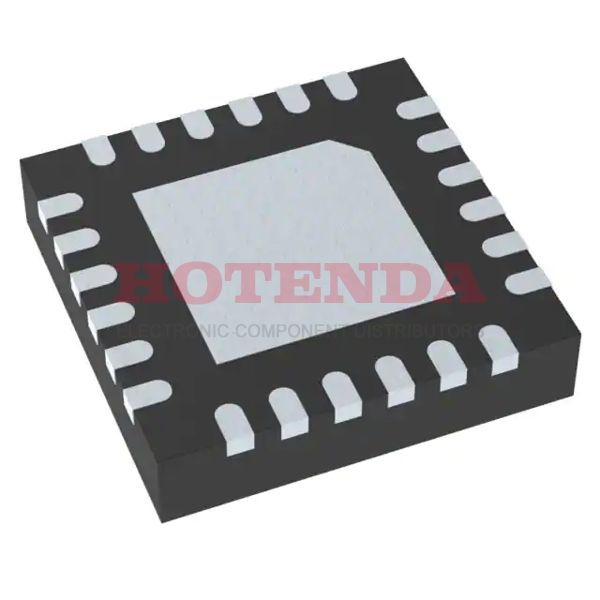

CDC421212RGERG4 Overview
Tape & Reel (TR)-method packaging is used for clock ICs. 24-VFQFN Exposed Pad contains this Clock PLL. This clock generator will sustain a maximum temperature of 260 when reflown. There are 24 terminations found in the file. To operate this time clock generator, 3.3V voltage should be applied. In this clock generator, LVCMOS, Crystal is used as the input to the clock. A total of 1 circuits are implemented to access the full performance of the electrical part. An up to 212.5MHz frequency is provided by this clock-based RF synthesizer. The Surface Mount allows the electrical component to be installed conveniently on the panel. Clock generators should operate with the voltage supply of 3V~3.6V. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. This is a clock generator compatible with LVPECL logic levels. An electrical part such as this one can be classified as a Clock Generator component. The clock-generating IC is a 24-bit device designed specifically for microprocessors. CDC421212 is the base part number for finding related electronic parts. There are 24 pins on the frequency generators that are available for use. Supply voltage 3.3V is what clock generator can handle.
CDC421212RGERG4 Features
Available in the 24-VFQFN Exposed Pad
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CDC421212RGERG4 Applications
There are a lot of Texas Instruments CDC421212RGERG4 Clock Generators applications.
- Broadcast communication
- Microwave radio
- Signal frequency synthesis circuits
- Set-top boxes
- Telecommunication systems
- Automatic test equipment
- Remote telemetry and instrumentation
- VSAT (Small Ground Satellite Station)
- Electronic equipment
- Mixed mode (analog and digital) applications
