CDC421156RGER Overview

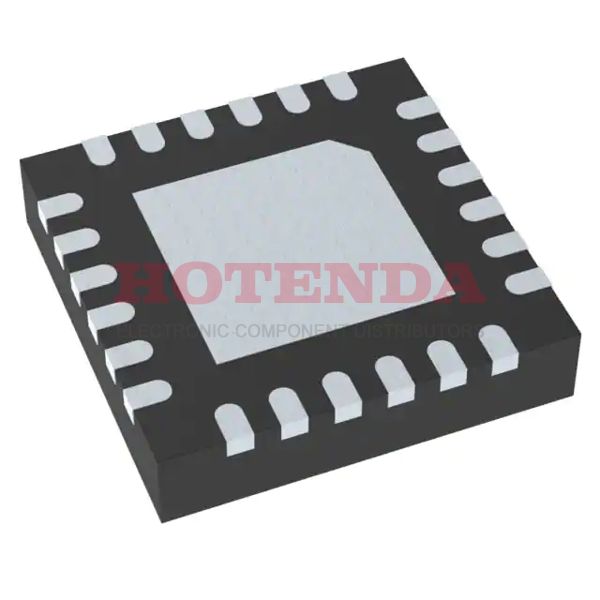

Clock ICs are packaged using the Tape & Reel (TR) method. This clock generator is embedded in the 24-VFQFN Exposed Pad package. In the reflowing process, this clock generator ic is able to maintain a maximum temperature of 260. There are a total of 24 terminations in this file. This clock generator ic should receive a voltage of 3.3V. There is a Clock PLL called LVCMOS, Crystal which is designed to be the input to this clock generator. RF synthesizers based on this clock provide frequencies up to 156.25MHz maximum. The Surface Mount allows the electrical component to be installed conveniently on the panel. There are 3V~3.6V available for use with this clock PLL. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. I would like to present to you a frequency synthesizer that is compatible with LVPECL logic levels. This electronic component can be classified into Clock Generator. There is a 24-bit clock-generating IC built specifically for microprocessors in this frequency generator. You can find related electrical components to the base part number CDC421156. It is possible to connect to the frequency generators via 24 pins. The maximum supply voltage that analog clock generator can handle is 3.3V. 1 signal outputs allow for maximi1ation of output frequency.
CDC421156RGER Features
Available in the 24-VFQFN Exposed Pad
Supply voltage of 3.3V
Operating supply voltage of 3.3V
CDC421156RGER Applications
There are a lot of Texas Instruments CDC421156RGER Clock Generators applications.
- Phase modulation cellular systems
- Wide area power system
- Local oscillator source in receiver
- Automatic control system test
- VSAT (Small Ground Satellite Station)
- Mobile telephones
- Clock signals to the high-speed Digital RF circuits
- Microwave radio
- Walkie-talkies
- Radiotelephones
